Swing Check Valve, WCV Series, 10 in, Wafer Connection, Inline, PVC Body MPN:WCV11000VS
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for ensuring the free flow of water in your pool or spa system. By preventing backflow and siphoning, this valve helps maintain optimal water circulation and pressure, reducing the risk of equipment damage and prolonging its lifespan. Suitable for use in a variety of applications, including residential and commercial pools, the Hayward Check Valve is a must-have for any pool owner or operator looking to ensure the health and safety of their water. Its compact design and easy installation make it a convenient choice for any system upgrade.
Top product features:
- It allows for one-way fluid flow.
- It prevents backflow and ensures consistent operation.
- It is designed to reduce pressure and wear on system components.
Top product applications:
- Pool and Spa Equipment
- Swimming Pool Automation Systems
- Water Treatment Systems

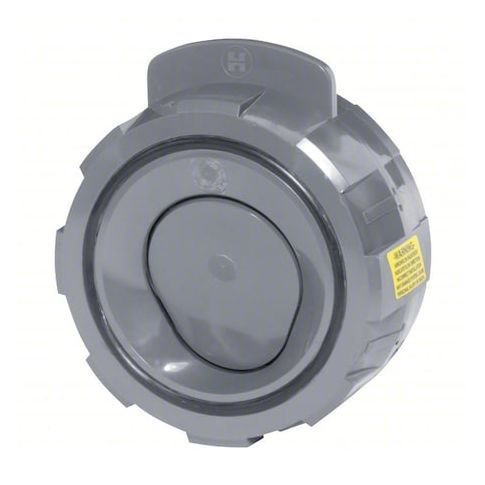

HAYWARD FLOW CONTROL WCV11000VS is a 10 in. inline swing check valve with a PVC body and wafer connections on both sides. It uses a hinged swing mechanism to allow one-way flow and close when flow reverses and is intended to reduce reverse flow in piping systems using media compatible with PVC and FKM materials. This valve is rated for horizontal or vertical mounting, with a maximum operating pressure of 150 psi and an operating temperature range of 34 to 140 degrees F.
Key Features:
- Swing check mechanism: 316 stainless steel swing mechanism configured for one-way flow control.
- Body and seal materials: PVC body with FKM seal.
- Connection configuration: 10 in. wafer connection on side 1 and 10 in. wafer connection on side 2.
- Valve body style: Inline body for straight-through piping layouts.
- Flow capacity: Cv 2,249.
- Media compatibility: For corrosive chemicals compatible with PVC body and FKM seal materials.
- Mounting orientation: Horizontal, vertical.
- Pressure and temperature ratings: 150 psi maximum operating pressure
- 34 to 140 degrees F operating temperature range.
- Check type: Silent check design.
- Spring material: Stainless steel.
- Standards: ANSI 150, ASTM D1784.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.30
- Package Width: 21.30
- Package Height: 12.00
- Package Weight: 31.00
