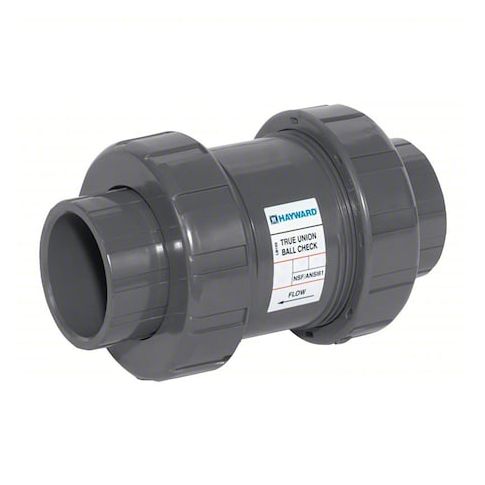

Ball Check Valve, TC Series, Inline, 1 in, Flange Connection, PVC Body MPN:TC10100F
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for your plumbing needs. Designed for use in a variety of applications, including pools and water treatment systems, this valve ensures one-way flow to prevent backpressure and damage. Its compact size and durable construction make it easy to install and maintain, providing long-lasting performance. Ideal for use in residential and commercial settings, the Hayward Check Valve is a must-have for any system that requires precise flow control. Its reliability and efficiency make it a valuable addition to any plumbing system.
Top product features:
- It automatically allows fluid to flow in one direction, preventing backflow and ensuring proper system operation.
- It can be used in a variety of applications, including pool and spa systems, where it helps to regulate water flow and prevent damage to equipment.
- It is designed to be a compact and space-saving component, allowing for easy installation and integration into existing systems.
Top product applications:
- Pool and spa systems
- Hydraulic systems
- Pumping systems
HAYWARD FLOW CONTROL TC10100F is an inline 2-way ball check valve with a PVC body for one-direction flow control and backflow control. It uses a ball check mechanism that opens at 1.5 psi cracking pressure and is listed for corrosive-chemical media in liquid handling and process line applications.
Key Features:
- Ball check mechanism opens at 1.5 psi cracking pressure for forward flow and is intended to limit reverse flow.
- PVC body with FKM seal and EPDM seat.
- 1 in nominal valve size with 1 in flange connections on both sides.
- Inline valve body style for straight-through installation.
- Cv: 11.
- Maximum operating pressure: 235 psi.
- Operating temperature range: 34 degrees F to 70 degrees F.
- Mounting orientation: horizontal or vertical.
- For media: corrosive chemicals.
- NSF 61 certified for food and drinking water system components.
- Standards: ANSI 372, ANSI 61, ASTM D1784, ASTM D4101.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 15.00
- Package Height: 12.00
- Package Weight: 1.98
