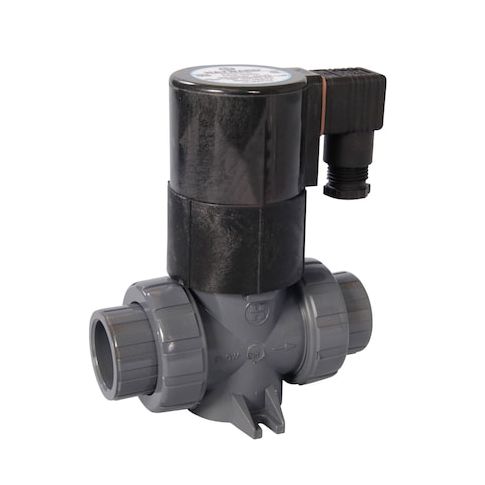

Solenoid Valve, 2-Way, Normally Closed, 1 in Pipe Size, 24V AC/DC, Inline Single, Direct Acting MPN:SV50100TV24AD
The Hayward FLOW CONTROL SV50100TV24AD is a reliable and efficient 2-way, normally closed solenoid valve designed for various applications. Suitable for water media and operating at a nominal voltage of 24V AC/DC, this valve features a direct acting mechanism and includes coil and sealing components. With a maximum flow rate of 11.5 gpm, it's ideal for residential and commercial water treatment systems, pools, and industrial processes. Its durable PVDF construction and NEMA 4 enclosure rating make it suitable for indoor and outdoor use, ensuring reliable performance in a wide range of temperatures and pressures.
Top product features:
- Operates using a direct acting mechanism
- Suitable for water media due to PVDF construction
- Functions at a nominal voltage of 24V AC/DC
Top product applications:
- Drinking Water Treatment Systems
- Pool and Spa Equipment
- Water Distribution Systems
The HAYWARD FLOW CONTROL SV50100TV24AD is a 2-way, normally closed solenoid valve designed for inline single valve body style applications. It features a PVDF construction suitable for water media and operates using a direct acting mechanism. This solenoid valve includes coil and sealing components. It functions at a nominal voltage of 24V AC/DC with a power consumption of 19.2 watts. It is rated for fluid temperatures up to 200°F and ambient temperatures from 10°F to 240°F. Maximum differential pressure rating: 90 psi for water.
Key Features:
- - Valve Body Material: PVDF
- - Valve Configuration: Normally Closed, 2-Way
- - Operation Type: Direct Acting
- - Nominal Pipe Size: 1 in with NPT inlet and outlet connections
- - Maximum Flow Rate: 11.5 gpm with a Cv of 3.8
- - Fluid Compatibility: Water
- - Coil Insulation Class: F, Coil Enclosure: Without Junction Box, Watertight
- - Electrical Connections: 1/2 in Conduit
- SJ-Type Cord, Voltage: 24V AC/DC, Wattage: 19.2 W
- - Seal Material: FPM
- - Installation Orientation: Horizontal or Vertical
- - Enclosure Rating: NEMA 4
- suitable for indoor and outdoor use
- - Dimensions: Overall Height 6-5/8 in, Overall Length 5-7/16 in
- - Includes coil and sealing components
- - Compliance: CSA, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.93
- Package Width: 3.81
- Package Height: 8.12
- Package Weight: 3.30
