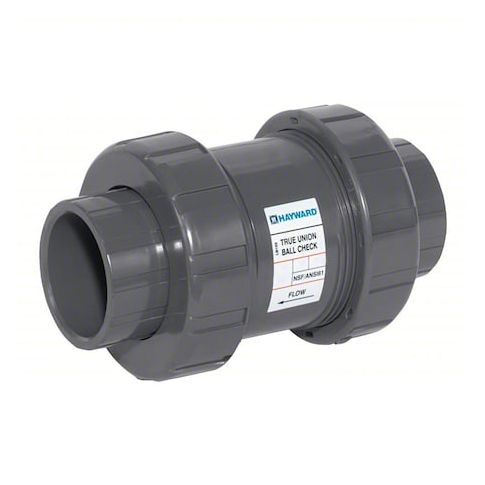

Ball Check Valve, TC Series, Inline, 2 in Flange, CPVC Body, EPDM Seal/Seat MPN:TC20200FE
Out Of Stock
The Hayward Check Valve is a reliable and efficient solution for various applications, including pool and spa systems. This US-manufactured valve ensures smooth water flow while preventing backflow and siphoning, reducing the risk of contamination and damage to equipment. Its compact design and easy installation make it an ideal choice for new installations or replacement needs. With a lead time of 15 days and a minimum order quantity of one unit, this check valve is perfect for small to large-scale projects, providing peace of mind and hassle-free operation. Its versatility and reliability make it a must-have for any water treatment system.
Top product features:
- It allows fluid to flow in one direction while preventing backflow.
- It is designed to be drop shipped.
- It can be shipped in 15 days.
Top product applications:
- Pool Filtration Systems
- Hot Tub Circulation Systems
- Well Pump Applications
HAYWARD FLOW CONTROL model TC20200FE is a 2-way inline ball check valve for one-direction flow control in liquid handling and process lines. It uses a ball check mechanism and is configured for forward flow and reverse-flow checking. The valve is constructed with a CPVC body and EPDM seal and seat materials for compatible liquid media. It has a 2 in nominal size with flanged connections on both ends, a 1.5 psi cracking pressure, and can be mounted in horizontal or vertical orientations.
Key Features:
- - Ball check mechanism: Uses a free-moving ball for reverse-flow checking.
- - Body material: CPVC.
- - Seal and seat material: EPDM.
- - Valve size: 2 in nominal size with 2 in connections on both sides.
- - Connection type: Flange x flange.
- - Valve body style: Inline, 2-way design.
- - Flow capacity: Cv 130.
- - Pressure rating: 235 psi maximum operating pressure.
- - Temperature range: 34 degrees F to 140 degrees F.
- - Mounting orientation: Horizontal, vertical.
- - Certifications and standards: Meets multiple NSF, ANSI, and ASTM standards.
- - Overall height: 8 9/16 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 15.00
- Package Height: 9.00
- Package Weight: 6.80
