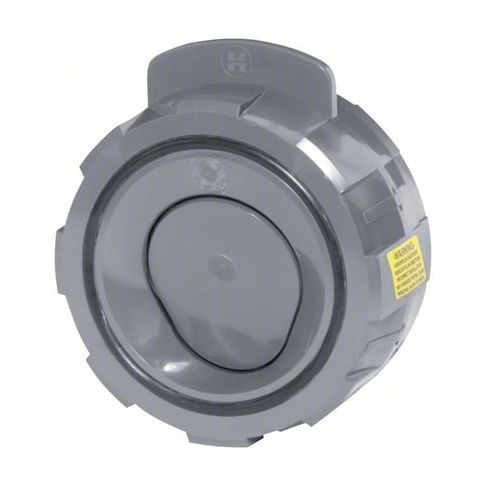

Swing Check Valve, WCV Series, Inline, 10 in Wafer Connection, PVC Body MPN:WCV11000V

HAYWARD FLOW CONTROL WCV11000V is a 10 in inline swing check valve with a PVC body and 316 stainless steel swing mechanism. This swing check valve is for one-direction flow applications with a reverse-flow closure mechanism. It is intended for compatible piping systems handling corrosive chemical media where backflow control is required. The wafer-style valve has 10 in connections on both sides with mounting orientation: horizontal or vertical.

Key Features:

• 10 in inline swing check valve.
• Swing check mechanism for forward-flow opening and reverse-flow closure.
• PVC body with 316 stainless steel check mechanism.
• For media: corrosive chemicals.
• 10 in nominal valve size with 10 in wafer connections on both sides.
• Inline, 2-way valve body style.
• Maximum operating pressure: 150 psi.
• Operating temperature range: 34 degrees F to 140 degrees F.
• Seal material: FKM.
• Coefficient of volume (Cv): 2,249.
• Silent check: standard.
• Counterweight: none.
• Standards: ANSI 150, ASTM D1784.
