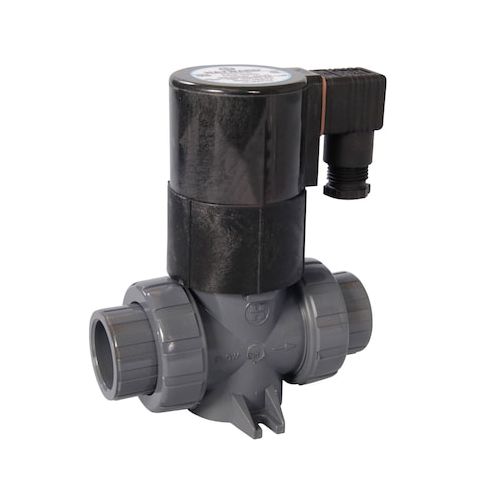

Solenoid Valve, 2-Way, Normally Closed, 3/4 in Pipe Size, 120V AC, Inline Single, Direct Acting MPN:SV50075SV
The Hayward FLOW CONTROL SV50075SV is a reliable and efficient solenoid valve designed for controlling water flow in a variety of applications. Suitable for both indoor and outdoor use, this valve is constructed with a corrosion-resistant PVDF body and FPM seals, making it ideal for use in harsh environments. Its compact design and direct acting mechanism allow for easy installation and operation, making it a great choice for plumbers, contractors, and pool professionals. With a flow rate of 7 gpm and a wide temperature range, this valve is perfect for use in residential and commercial pool systems, irrigation systems, and water treatment applications.
Top product features:
- The product is a normally closed, direct acting solenoid valve designed for controlling the flow of water.
- It has a PVDF valve body with FPM seals rated for corrosive environments.
- It can handle fluid temperatures between 120°F and 200°F and ambient operating temperatures from 10°F to 240°F.
Top product applications:
- Pool and Spa Systems
- Water Treatment and Filtration Systems
- Industrial Process Control Systems
The HAYWARD FLOW CONTROL SV50075SV is a normally closed, direct acting solenoid valve designed for controlling the flow of water. It is constructed with a PVDF valve body with FPM seals
- rated for corrosive environments and suitable for indoor and outdoor installation. The valve operates with a nominal pipe size of 3/4 inch and a straight inline single valve body style designed for 2-way flow control. It includes a coil rated at 120V AC and 19.2 watts and comes with both coil and sealing components. The valve supports horizontal or vertical mounting orientations and is rated to handle fluid temperatures between 120°F and 200°F, with ambient operating temperatures from 10°F to 240°F.
Key Features:
- - Maximum flow rate: 7 gallons per minute (gpm)
- - Valve orifice diameter: 3/8 inch
- - Maximum operating pressure differential: 90 psi (water)
- - Coil enclosure: NEMA 4-rated
- no junction box required
- - Coil insulation class: F
- - Electrical connections: 1/2 inch conduit
- SJ-type cord
- - Environmental suitability: Indoor/outdoor use
- corrosion-resistant PVDF body with FPM seals
- - Mounting orientation: Horizontal or Vertical
- - NEMA enclosure rating: 4
- - Compliance and standards: CSA, UL Listed
- - Inlet and outlet connection type: IPS
- - Valve starting configuration: Normally Closed
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 8.20
- Package Weight: 3.50
