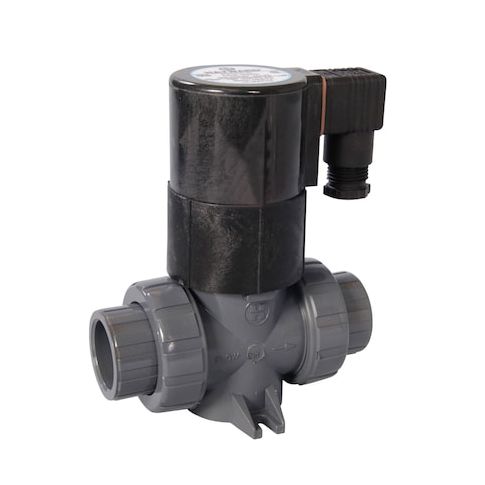

Solenoid Valve, 2-Way, Normally Closed, 3/4 in Pipe Size, 220V AC, Inline Single, Direct Acting MPN:SV50075TV220A
The Hayward FLOW CONTROL SV50075TV220A is a reliable and efficient solenoid valve designed for controlling water flow in various applications. Suitable for use in water treatment, irrigation, and industrial processes, this valve offers a maximum flow rate of 7 gpm and operates within a wide temperature range of 10°F to 240°F. Its direct-acting, normally closed configuration ensures precise control and minimizes energy consumption. With a durable PVDF body and FPM seals, this valve withstands high pressure differentials and ensures long-lasting performance. Its compact design and NEMA 4 enclosure rating make it an ideal choice for harsh environments and space-constrained installations.
Top product features:
- Direct acting, normally closed configuration
- PVDF valve body with FPM seal material
- Maximum flow rate of 7 gpm, Cv of 3.2
Top product applications:
- Pool and Spa Systems
- Industrial Water Treatment Systems
- Water Cooling Systems
The HAYWARD FLOW CONTROL SV50075TV220A is a normally closed, direct-acting solenoid valve designed for controlling the flow of water. Constructed with a PVDF body and FPM seals, it accommodates a maximum flow rate of 7 gpm and operates with an orifice diameter of 3/8 in. Media temperature range: 120°F to 200°F and Ambient temperature range: 10°F to 240°F. It accepts a nominal pipe size of 3/4 in via NPT inlet and outlet connections and can be installed in either horizontal or vertical orientations.
Key Features:
- - Operation: Direct acting, normally closed configuration
- - Material: PVDF valve body with FPM seal material
- - Flow Capacity: Maximum flow rate of 7 gpm, Cv of 3.2
- - Temperature Ratings: Media temperature range: 120°F to 200°F
- Ambient temperature range: 10°F to 240°F
- - Pressure Rating: Maximum operating pressure differential of 90 psi for water
- - Electrical: 220V AC voltage, 19.2 W wattage, coil included
- - Connections: 3/4 in nominal pipe size with NPT threaded inlet and outlet
- - Mounting orientation: Horizontal or vertical installation permitted
- - Electrical Connections: 1/2 in conduit and SJ-type cord
- - Standards and Compliance: Certified to CSA and UL standards
- - NEMA Enclosure Rating: 4
- - Valve Body Style: Straight inline single, 2-way valve
- - Dimensions: Overall height 6-5/8 in
- overall length 5-7/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.93
- Package Width: 3.81
- Package Height: 8.12
- Package Weight: 3.30
