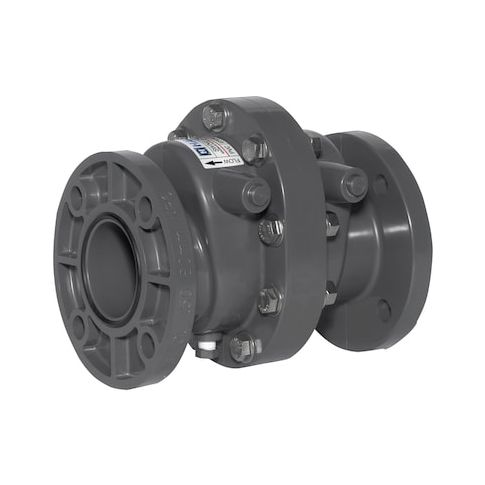

Check Valve, SW Series, Swing, Inline, PVC Body, 6 in Flanged, EPDM Seat MPN:SW1600E
This Hayward Check Valve is a reliable and efficient solution for managing fluid flow in various applications. Its swing mechanism and PVC body ensure smooth operation and resistance to corrosion, while its EPDM seal provides long-lasting durability. Suitable for horizontal and vertical mounting, this valve is ideal for use in water treatment systems, irrigation networks, and other industrial processes where pressure must be controlled. With a maximum water pressure of 150 psi, it can handle demanding applications with ease, making it a valuable addition to any system requiring precise flow management.
Top product features:
- Swing mechanism for easy installation and adjustment
- Full flow design for maximum water flow
- EPDM seal for durability and resistance to corrosion
Top product applications:
- Pool and spa equipment
- Water treatment systems
- Industrial piping systems
The HAYWARD FLOW CONTROL SW1600E is a 6 in flanged check valve with an inline PVC body. It uses a swing check mechanism for one-direction flow and reverse-flow control. The valve features a PVC check mechanism with EPDM seat and seal materials for water service in piping and process system backflow-control applications.
Key Features:
- 6 in nominal valve size with 6 in flange connections on both sides
- Swing check mechanism with inline body style
- PVC body and PVC check mechanism
- EPDM seat and seal materials
- ANSI flange class: Class 150
- Maximum water pressure: 150 psi at 70 degrees F
- Maximum operating pressure: 150 psi
- Cracking pressure: 3 psi
- Flow: 650 gpm
- Cv: 150
- Full flow design
- Mounting orientation: horizontal or vertical
- Operating temperature range: 34 degrees F to 140 degrees F
- Silent check: standard
- Standards: ASTM D1784
- Overall length: 15.75 in
- overall height: 15 5/8 in
- width: 14 49/64 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.12
- Package Width: 17.12
- Package Height: 20.68
- Package Weight: 51.60
