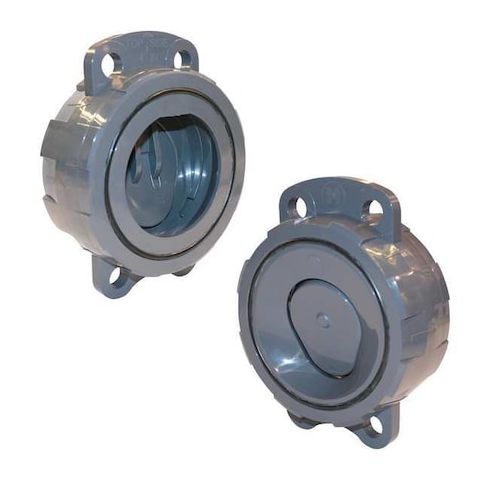

Check Valve, Wafer, 6", PVC/EPDM MPN:WCV1600E

• The HAYWARD FLOW CONTROL WCV1600E is a 6 in wafer check valve with an inline body design for process piping systems handling water. It uses a swing check mechanism for one-way flow applications, and the wafer-style body is configured for installation between compatible flanges. The valve features PVC construction with EPDM seat and seal materials and is rated for horizontal or vertical mounting.

  Key Features:

  • Valve type: Wafer check valve with inline wafer body design
  • Size: 6 in nominal valve size with 6 in connections on both sides
  • Connection style: Flange x Flange, ANSI Class 150
  • Body and mechanism material: PVC
  • Seat and seal material: EPDM
  • Check mechanism: Swing
  • Flow design: Single
  • Flow capacity: 1,000 gpm with Cv of 848
  • Cracking pressure: 1.0 psi
  • Pressure rating: 150 psi at 70 Degrees F maximum water pressure
  • 150 psi maximum operating pressure
  • Temperature range: 40 Degrees F minimum to 140 Degrees F maximum
  • Full flow: Yes
  • Mounting orientation: Horizontal, Vertical
  • Standards: ASTM D1784, ISO 9001
