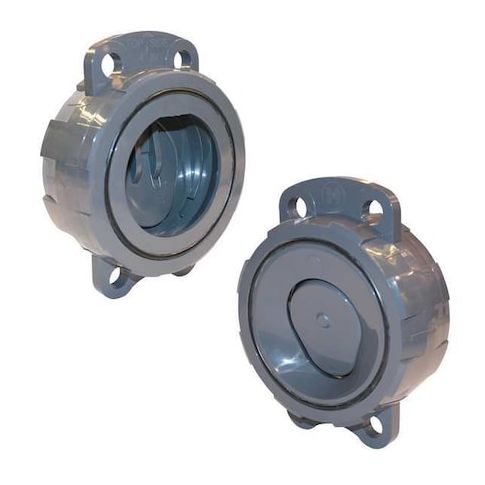

Check Valve, WCV Series, Wafer, Swing, 6 in, Flange x Flange, PVC MPN:WCV1600V

• HAYWARD FLOW CONTROL WCV1600V is an inline wafer check valve for process piping that allows water to flow in one direction and helps prevent reverse flow. This PVC valve uses a swing check mechanism in a compact wafer-style body for flanged Class 150 systems. It is designed for 6 in. connections and can be mounted horizontally or vertically.

  Key Features:

  • Wafer check valve with inline body style and single-flow design
  • PVC body construction with PVC check mechanism
  • Flange x flange wafer-end connection for 6 in. pipe size
  • Maximum operating pressure: 150 psi
  • maximum water pressure: 150 psi at 70 Degrees F
  • Temperature range: 40 Degrees F minimum to 140 Degrees F maximum
  • Swing check mechanism with 1.0 psi cracking pressure
  • Flow capacity: Cv 848
  • rated flow: 1,000 gpm
  • Seal and seat material: FPM/FKM
  • Horizontal or vertical mounting orientation
  • Meets ASTM D1784
  • manufactured under ISO 9001 quality system
  • Overall dimensions: 3 in. length, 11 1/8 in. height, 8 5/8 in. width
