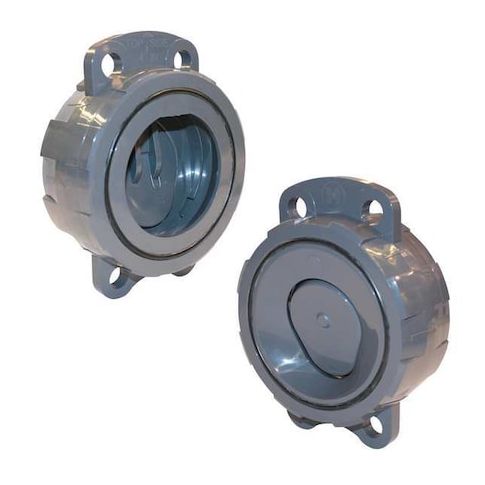

Wafer Check Valve, WCV Series, 2-1/2 in, Flange x Flange, Swing, PVC Body MPN:WCV1250V

• HAYWARD FLOW CONTROL WCV1250V is a 2-1/2 in wafer check valve for water service applications within the listed pressure and temperature ratings. This inline swing check valve has a compact wafer design and is designed for installation between Class 150 flanges. It is configured for one-direction flow and reverse-flow reduction. The valve features PVC body and PVC check mechanism construction for piping systems where space is limited.

  Key Features:

  • Valve type: Wafer check valve with inline body style and swing check mechanism
  • Size: 2-1/2 in nominal valve size with 2-1/2 in connections on both sides
  • Connection style: Flange x Flange, wafer ends, ANSI Flange Class 150
  • Body and mechanism material: PVC
  • Seal and seat material: FPM/FKM
  • Flow design: Single
  • full flow: Yes
  • Flow rating: 155 gpm
  • Cv: 144
  • Cracking pressure: 1.0 psi
  • Maximum water pressure: 150 psi at 70 degrees F
  • Temperature range: 40 degrees F to 140 degrees F
  • Mounting orientation: Horizontal or vertical
  • Spring material: 316 stainless steel
  • Standards: ASTM D1784, ISO 9001
  • Overall length: 2.3 in
