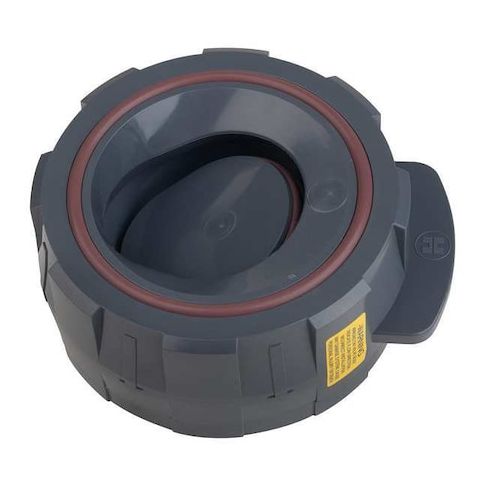

Check Valve, Wafer, 3", PVC/FPM, with SS Spring MPN:WCV1300VS
Free Shipping
In Stock
This Hayward Check Valve is a reliable and efficient solution for various applications, including water treatment, irrigation, and industrial processes. Its wafer design allows for easy installation and maintenance, while its PVC/FPM construction ensures durability and resistance to corrosion. The stainless steel spring provides added strength and longevity. With a flow rate of 220 gallons per minute, this check valve is suitable for a wide range of uses, including residential and commercial plumbing, pool and spa systems, and industrial piping systems. Its compact size and lightweight design make it easy to handle and install.
Top product features:
- Check Valve design allows for single direction flow
- Flange x Flange connection type enables easy installation and removal
- Stainless Steel spring provides increased durability and resistance to corrosion
Top product applications:
- Drainback Pool Systems
- Sump Pumps
- Hydrotherapy Systems
HAYWARD FLOW CONTROL WCV1300VS is a 3 in wafer check valve with an inline body design for general-purpose water service. It uses a swing check mechanism for one-way flow applications and to reduce reverse flow in flanged piping systems. The PVC body and PVC check mechanism are paired with FPM sealing components and a 316 stainless steel spring. The valve has a wafer-style body with an overall length of 2.41 in for installation between Class 150 flanges.
Key Features:
- 3 in nominal valve and pipe size with wafer connections on both sides
- Connection type: Flange x Flange
- ANSI flange class: Class 150
- Body material: PVC
- Check mechanism material: PVC
- Check mechanism: Swing
- Flow design: Single
- Valve body style: Inline
- Seal and seat material: FPM/FKM
- Spring material: 316 stainless steel
- Cracking pressure: 1.0 psi
- Flow capacity: 220 gpm
- Cv: 87
- Maximum pressure: 150 psi at 70 degrees F
- Operating temperature range: 40 degrees F to 140 degrees F
- Mounting orientation: Horizontal or vertical
- Standards: ASTM D1784, ISO 9001
- Overall length: 2.41 in
- Overall height: 6 1/2 in
- Width: 5 1/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 8.50
- Package Height: 5.30
- Package Weight: 2.15
