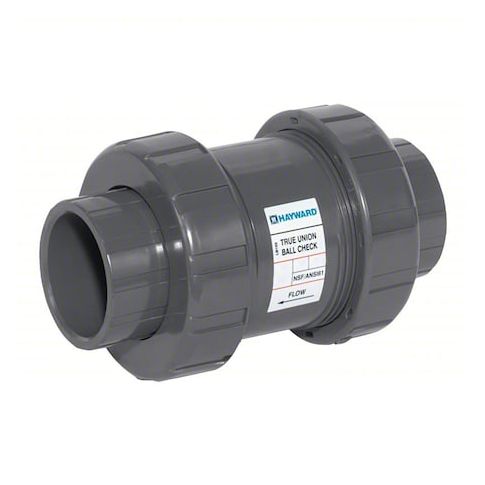

Ball Check Valve, TC Series, Inline, 1 1/2 in Socket, Polypropylene, EPDM Seal MPN:TC30150SE
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for various applications. Its compact design and easy installation make it ideal for use in pool and spa systems, ensuring smooth water flow and preventing backflow. The valve's durable construction and long lifespan reduce maintenance costs and downtime, providing a cost-effective solution for pool and spa owners. Suitable for residential and commercial use, the Hayward Check Valve is a versatile product that can be applied in a range of settings, from small pools to large commercial facilities, offering peace of mind and optimal performance.
Top product features:
- Ships in 30 days
- Has a minimum order quantity of 1 unit
- Has a unit of measure of each unit
Top product applications:
- Pool Equipment
- Water Treatment Systems
- Hydrotherapy Systems
The HAYWARD FLOW CONTROL TC30150SE is an inline ball check valve for one-way flow control in liquid handling and process lines. It uses a ball check mechanism to allow forward flow and restrict reverse flow. The valve is constructed with a polypropylene body and EPDM seal and seat materials for compatible chemical applications. This 2-way valve has 1-1/2 in socket connections on both ends and can be mounted in horizontal or vertical orientations.
Key Features:
- Ball check mechanism uses a free-moving ball to support reverse-flow control.
- Polypropylene body construction.
- EPDM seal and seat materials.
- 1-1/2 in connection size on side 1 and side 2.
- Socket connection type on side 1 and side 2.
- 1.5 psi cracking pressure.
- Cv 45 flow capacity.
- 235 psi maximum operating pressure.
- Operating temperature range: 20 degrees F to 250 degrees F.
- Inline valve body style.
- 2-way valve configuration.
- Horizontal or vertical mounting orientation.
- Overall height: 7 1/16 in.
- Conforms to ASTM D1784 and ASTM D4101.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 9.10
- Package Height: 7.20
- Package Weight: 1.83
