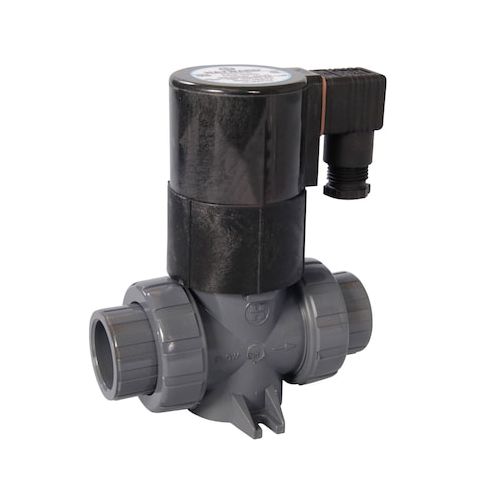

Solenoid Valve, 2-Way, Normally Closed, 1/2 in Pipe Size, 120V AC, Inline Single, Direct Acting MPN:SV50050TV

• The HAYWARD FLOW CONTROL SV50050TV is a normally closed, direct acting solenoid valve designed for inline operation with a 2-way flow path. It features a PVDF valve body and FPM seals, suitable for controlling the flow of water with a maximum flow rate of 3.8 gpm and an orifice diameter of 3/8 inch. The valve operates within a fluid temperature range of 120°F to 200°F and an ambient temperature range of 10°F to 240°F. Its nominal pipe size is 1/2 inch with NPT threaded inlet and outlet connections. The valve supports a maximum operating pressure differential of 90 psi for water and includes the coil and sealing components for installation.

  Key Features:

  • - Operation Type: Direct Acting
  • - Valve Starting Configuration: Normally Closed
  • - Valve Body Material: PVDF
  • - Seal Material: FPM
  • - Maximum Flow Rate: 3.8 gpm
  • - Orifice Diameter: 3/8 in
  • - Nominal Pipe Size: 1/2 in
  • - Connection Type: NPT inlet and outlet
  • - Operating Pressure Differential: 0 to 90 psi (Water)
  • - Fluid Temperature Range: 120°F to 200°F
  • - Ambient Temperature Range: 10°F to 240°F
  • - Electrical Voltage: 120V AC
  • - Wattage: 19.2 W
  • - Electrical Connections: 1/2 in Conduit
  • SJ-Type Cord
  • - Coil enclosure: Watertight
  • without junction box
  • - Coil Insulation Class: F
  • - Environmental rating: NEMA 4 enclosure
  • suitable for indoor and outdoor installations
  • - Mounting Orientation: Horizontal or Vertical
  • - Standards: CSA, UL Listed
  • - NEMA Enclosure Rating: 4
  • - Valve Body Style: Straight
  • - Includes Coil and Seal Components
