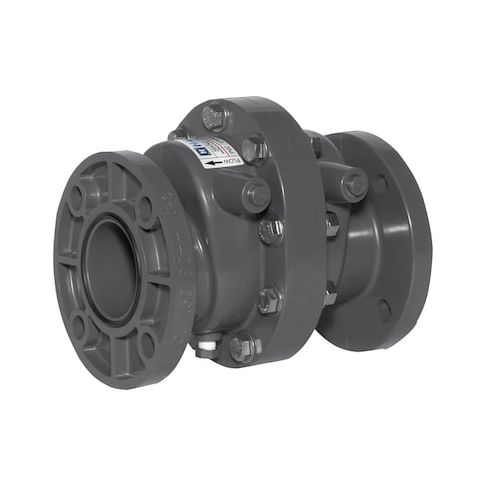

Swing Check Valve, SW Series, 4 in, Flanged, Inline, CPVC Body, 11.81 in Overall L MPN:SW2400VC
The Hayward CPVC Swing Check Valve is a reliable and efficient solution for various applications, including commercial and residential plumbing systems. Its swing mechanism allows for easy installation and maintenance, while its CPVC body provides excellent resistance to corrosion and chemicals. With a maximum water pressure of 150 psi, this valve is suitable for a wide range of water supply systems. Suitable for horizontal or vertical mounting, it's ideal for use in water treatment plants, irrigation systems, and other industrial applications where a reliable check valve is required. Its compact design also makes it a great fit for tight spaces.
Top product features:
- Swing check valve mechanism allows for unobstructed flow when not in use.
- Flanged connection type enables secure and leak-free attachment to pipes.
- Full flow design allows water to pass through the valve without restriction.
Top product applications:
- Pool and spa equipment
- Water treatment systems
- Industrial piping systems
HAYWARD FLOW CONTROL SW2400VC is a 4 in. CPVC swing check valve with a flanged inline body for one-way flow applications where reduced reverse flow is required. Its CPVC body and check mechanism are paired with FKM seal and seat materials, and the valve is rated for horizontal or vertical mounting. This full-flow design is rated for water handling applications with a maximum operating pressure of 150 psi and features CPVC thermoplastic construction.
Key Features:
- 4 in. CPVC swing check valve with inline body design and automatic swing-check operation for one-way flow applications.
- 4 in. flanged connections on both sides
- ANSI Flange Class 150.
- Body material: CPVC
- check mechanism material: CPVC.
- Seal material: FKM
- seat material: FKM.
- Maximum operating pressure: 150 psi
- maximum water pressure: 150 psi at 70 degrees F.
- Cracking pressure: 3 psi.
- Flow rate: 275 gpm
- Cv: 250.
- Full-flow design.
- Mounting orientation: horizontal or vertical.
- Operating temperature range: 34 degrees F to 180 degrees F.
- Includes counterweight.
- Meets ASTM D1784.
- Overall dimensions: 11.81 in. L x 11 3/8 in. H x 10 61/64 in. W.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.18
- Package Width: 11.56
- Package Height: 13.00
- Package Weight: 22.80
