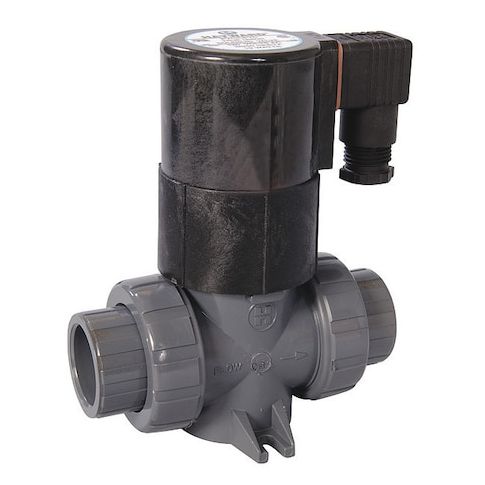

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, Inline Single, CPVC MPN:SV20075STE

• The HAYWARD FLOW CONTROL SV20075STE is a 2-way, 2-position direct acting solenoid valve with a normally closed starting configuration. It features a straight valve body style made from CPVC and is intended for inline single-valve installations. Media compatibility: acids, salt water, water. Rated for operation at 120 V AC, 60 Hz

• includes solenoid coil and required seals. Mounting orientation: horizontal or vertical. Environmental rating: corrosive environments
• indoor and outdoor use.

  Key Features:

  • - Body Material: CPVC construction
  • - Valve Design: 2-Way/2-Position, normally closed configuration
  • - Valve Type: Inline Single, direct acting operation
  • - Nominal Pipe Size: 3/4 in with NPT threads for inlet and outlet
  • - Media compatibility: acids, salt water, water
  • - Maximum differential pressure: 120 psi (oil)
  • 90 psi (water)
  • - Maximum Fluid Temperature: 200°F
  • Minimum Fluid Temperature: 120°F
  • - Maximum Ambient Temperature: 190°F
  • Minimum Ambient Temperature: 34°F
  • - Coil Enclosure: Watertight with Class F insulation
  • - Electrical connections: 1/2 in conduit
  • Electrical rating: 120 V AC, 60 Hz
  • - Flow Characteristics: Cv of 3.2, max flow 7 gpm, max flow velocity 5 fps
  • - Seal Material: EPDM
  • - Dimensions: Overall length 5-1/2 in, height 6-19/32 in, width 3 in
  • - Environmental rating: corrosive environments
  • indoor/outdoor use
  • - NEMA Enclosure Rating: 4
