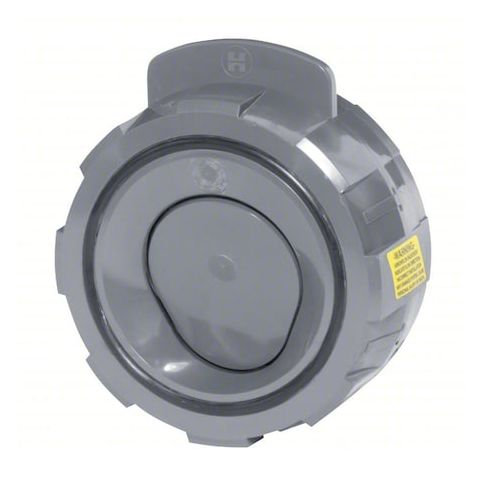

Swing Check Valve, WCV Series, 10 in, Wafer Connection, Inline, CPVC Body MPN:WCV21000ES
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient component designed to regulate fluid flow in various applications. Its unique design allows for one-way flow, preventing backflow and ensuring a consistent stream of water. Ideal for use in pool and spa systems, irrigation systems, and other fluid management applications, the Hayward Check Valve provides peace of mind by preventing damage caused by backflow. Its durable construction and long-lasting performance make it a valuable addition to any system, ensuring smooth operation and extending the lifespan of surrounding equipment.
Top product features:
- Check Valve allows fluid to flow in one direction and prevents backflow.
- Check Valve is designed to prevent water hammer and other pressure-related issues.
- Check Valve is constructed to handle high-pressure applications.
Top product applications:
- Pool Circulation Systems
- Water Heater Circuits
- Filtration Systems
HAYWARD FLOW CONTROL WCV21000ES is an inline 2-way swing check valve with 10 in wafer connections on both sides. It uses a hinged swing mechanism and is configured for one-direction flow control and reverse-flow closure in piping systems handling compatible corrosive chemicals. Construction includes a CPVC body, 316 stainless steel check mechanism, EPDM seal, and stainless steel spring materials.
Key Features:
- Swing check mechanism: Hinged internal mechanism opens with forward flow and closes on reverse flow.
- Body material: CPVC.
- Check mechanism material: 316 stainless steel.
- Seal material: EPDM.
- Spring material: Stainless steel.
- Connection size: 10 in on side 1 and side 2.
- Connection type: Wafer on side 1 and side 2.
- Valve body style: Inline.
- Valve ways: 2-way.
- For media: Compatible corrosive chemicals.
- Maximum operating pressure: 150 psi.
- Operating temperature range: 34 degrees F to 140 degrees F.
- Mounting orientation: Horizontal, vertical.
- Silent-check design: Yes.
- Coefficient of Volume (Cv): 2,249.
- Standards: ANSI 150, ASTM D1784.
- Includes counterweight: No.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.30
- Package Width: 21.30
- Package Height: 12.00
- Package Weight: 32.30
