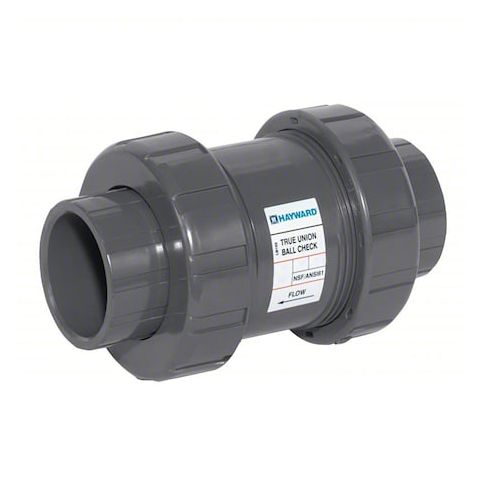

Ball Check Valve, TC Series, Inline, 1 1/2 in, Flange x Flange, CPVC MPN:TC20150F
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for various fluid control applications. Suitable for use in residential and commercial settings, this valve ensures one-way flow, preventing back-siphoning and ensuring safe operation. Its compact design and durable construction make it an ideal choice for plumbing, HVAC, and irrigation systems. The Check Valve is also easy to install and maintain, reducing downtime and increasing overall system performance. With its long-lasting and leak-free operation, this valve is perfect for applications where fluid control and safety are paramount.
Top product features:
- Check Valve allows fluid to flow in one direction, preventing backflow.
- Check Valve is designed for use in a variety of applications, including plumbing and HVAC systems.
- Check Valve is a drop-in replacement for existing check valves.
Top product applications:
- Pool Return Check Valve
- Pool Spool Check Valve
- Pool Spa Check Valve
The HAYWARD FLOW CONTROL TC20150F is an inline 2-way ball check valve with a CPVC body and 1-1/2 in flanged connections on both sides. It uses a free-moving ball check mechanism to support one-way flow with a check mechanism for reverse-flow restriction. The valve is rated for horizontal or vertical mounting and has a 1.5 psi cracking pressure for liquid handling systems and process lines with listed media compatibility for corrosive chemicals.
Key Features:
- Valve type: Ball check valve with inline body style for one-way flow control.
- Body material: CPVC.
- Check mechanism: Ball.
- Connection size: 1-1/2 in on side 1 and 1-1/2 in on side 2.
- Connection type: Flange on side 1 and side 2.
- Flow capacity: Cv 45.
- Cracking pressure: 1.5 psi.
- Maximum operating pressure: 235 psi.
- Operating temperature range: 34 degrees F to 70 degrees F.
- Media compatibility: Corrosive chemicals.
- Seal material: FKM.
- Seat material: EPDM.
- Mounting orientation: Horizontal, vertical.
- Nominal valve size: 1-1/2 in.
- Overall height: 7-1/16 in.
- NSF certification: NSF 61.
- Standards: ANSI 372, ANSI 61, ASTM D1784, ASTM D4101.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 7.50
- Package Height: 6.00
- Package Weight: 4.28
