Ball Check Valve, TC Series, Inline, 1 1/2 in Flange x 1 1/2 in Flange, PVC MPN:TC10150F
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment plants, and industrial processes. Its ability to prevent backflow and ensure one-way fluid movement makes it an essential component in maintaining system pressure and preventing contamination. With its US origin and durable construction, this check valve offers long-lasting performance and minimal maintenance. Suitable for use in a range of industries, it's an ideal choice for professionals and DIYers alike who require a trustworthy and easy-to-install valve. Its compact dimensions also make it a great fit for tight spaces.
Top product features:
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
Top product applications:
- Pools and spas
- Water treatment systems
- Industrial piping systems

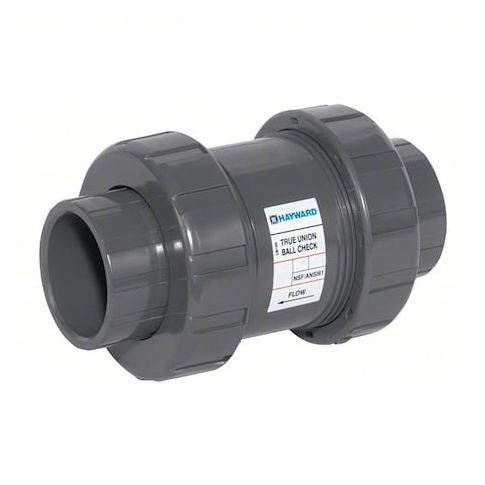

HAYWARD FLOW CONTROL TC10150F is an inline 2-way ball check valve intended for one-way flow control in compatible liquid handling and process lines. It is constructed with a PVC body and FKM/EPDM sealing components for compatible fluid applications, with flange connections on both sides for 1 1/2 in piping.
Key Features:
- Valve type: Ball check valve with a ball-style check mechanism for check-valve operation.
- Body style: Inline valve body with 2-way flow path.
- Body material: PVC.
- Connection size: 1 1/2 in on side 1 and 1 1/2 in on side 2.
- Connection type: Flange on side 1 and flange on side 2.
- Flow capacity: Cv 45.
- Cracking pressure: 1.5 psi.
- Maximum operating pressure: 235 psi.
- Operating temperature range: 34 degrees F to 70 degrees F.
- Seal material: FKM.
- Seat material: EPDM.
- Mounting orientation: Horizontal or vertical.
- NSF certification: NSF 61.
- Standards: ANSI 372, ANSI 61, ASTM D1784, ASTM D4101.
- Overall height: 7 1/16 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 7.50
- Package Height: 6.00
- Package Weight: 3.90
