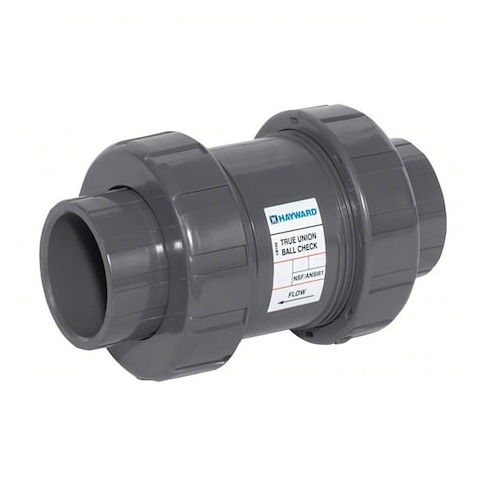

Ball Check Valve, TC Series, Inline, 1 1/4 in, Flanged, CPVC Body MPN:TC20125F

• HAYWARD FLOW CONTROL TC20125F is an inline 2-way ball check valve for one-direction flow control in liquid handling and process lines. It uses a ball check mechanism for one-direction flow control and to restrict reverse flow. The valve features a CPVC body

• media compatibility: corrosive chemicals. It has 1-1/4 in flange connections on both sides, a 1.5 psi cracking pressure, and can be mounted horizontally or vertically.

  Key Features:

  • Ball check mechanism: Uses a free-moving ball for one-way flow control and to restrict reverse flow.
  • Body material: CPVC.
  • Valve size: 1-1/4 in nominal size with 1-1/4 in flange connections on both sides.
  • Flow capacity: Cv 25.
  • Pressure rating: Maximum operating pressure 235 psi.
  • Temperature range: 34 Degrees F to 70 Degrees F.
  • Media compatibility: Corrosive chemicals.
  • Seal material: FKM
  • seat material: EPDM.
  • Mounting orientation: Horizontal, vertical.
  • Certifications and standards: Meets multiple NSF, ANSI, and ASTM standards.
  • Overall height: 6 15/16 in.
