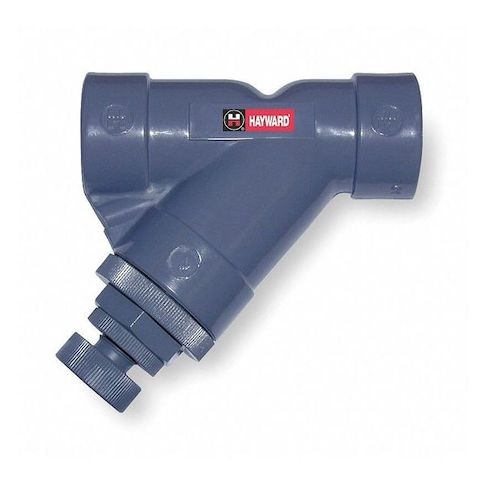

Y-Check Valve, Spring-Loaded, 2", PVC/FPM, Threaded, Adjustable 2-15 psi MPN:SLC10200T
Free Shipping
In Stock
The Hayward Y-Check Valve is a reliable and adjustable solution for managing water flow in a variety of applications. Its spring-loaded design ensures consistent operation, while the adjustable cracking pressure (2-15 psi) allows for precise control. Suitable for horizontal or vertical mounting, this valve is ideal for use in pools, spas, and water treatment systems. The PVC/FPM construction provides durability and resistance to corrosion, while the stainless steel spring ensures long-lasting performance. With a flow rate of 70 gpm, this valve is perfect for applications requiring high water flow, such as large pool systems or commercial water treatment facilities.
Top product features:
- Spring-loaded design allows for easy adjustment of the valve's cracking pressure
- Adjustable cracking pressure range of 2-15 psi
- Stainless steel spring material ensures durability and resistance to corrosion
Top product applications:
- Pool and spa systems
- Water treatment equipment
- Industrial piping systems
HAYWARD FLOW CONTROL SLC10200T is a 2 in spring-loaded Y-check valve for one-way flow control in general purpose water service. It features a PVC body with a piston-style check mechanism and FNPT threaded connections on both ends. The spring-loaded check mechanism is intended for applications where valve closure is needed when flow stops or reverses. The valve can be mounted horizontally or vertically.
Key Features:
- 2 in nominal valve size with 2 in FNPT x FNPT female threaded connections
- Y-style body with inline spring mechanism and piston check design
- PVC body, PVC check mechanism, and PVC seat
- Seal material: Viton/FKM
- Cracking pressure: 2.0 psi
- adjustable from 2 to 15 psi
- Flow capacity: 70 gpm
- Cv: 65
- Maximum pressure: 150 psi at 70 degrees F
- Operating temperature range: 40 degrees F to 140 degrees F
- Mounting orientation: horizontal or vertical
- Standards: ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.30
- Package Height: 12.20
- Package Weight: 4.35
