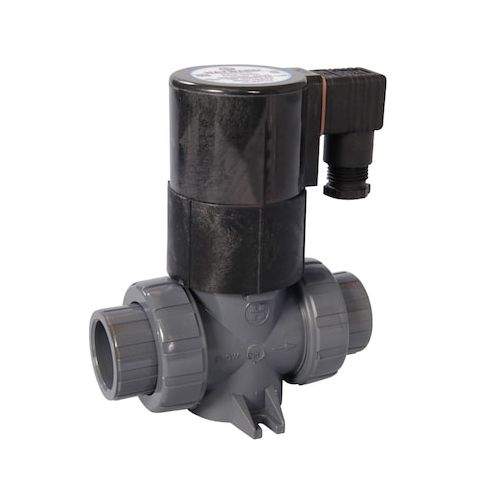

Solenoid Valve, 2-Way, Normally Closed, 3/4 in Pipe Size, 120V AC, Inline Single, Direct Acting MPN:SV50075TV
The Hayward FLOW CONTROL SV50075TV is a reliable and efficient 2-way solenoid valve designed for controlling water flow in a variety of applications. Constructed with a durable PVDF body, this valve features a 3/4 inch nominal pipe size and operates within a wide temperature range, making it suitable for use in both residential and commercial settings. Its normally closed, direct-acting design provides precise control over water flow, ideal for applications such as irrigation systems, pool equipment, and water treatment systems. With its compact design and easy installation, this valve is a convenient and cost-effective solution for any water flow control needs.
Top product features:
- Normally closed, direct-acting solenoid valve designed for controlling the flow of water.
- Features a 3/4 inch nominal pipe size with NPT inlet and outlet connections, offering an inline, single, 2-way valve configuration.
- Handles fluid temperatures from 120 to 200 degrees Fahrenheit.
Top product applications:
- Pool and Spa Systems
- Water Treatment Plants
- Industrial Process Control
The HAYWARD FLOW CONTROL SV50075TV is a normally closed, direct-acting solenoid valve designed for controlling the flow of water. Constructed with a PVDF body, the valve features a 3/4 inch nominal pipe size with NPT inlet and outlet connections, offering an inline, single, 2-way valve configuration. It operates within an ambient temperature range of 10 to 240 degrees Fahrenheit and handles fluid temperatures from 120 to 200 degrees Fahrenheit. Can be mounted horizontally or vertically.
Key Features:
- - Valve Body Material: PVDF
- - Valve Type: Inline Single, 2-Way
- - Starting Configuration: Normally Closed
- - Operation Type: Direct Acting
- - Nominal Pipe Size: 3/4 in
- - Orifice Diameter: 3/8 in
- - Maximum Flow Rate: 7 gpm
- - Maximum Operating Pressure Differential: 90 psi Water
- - Electrical Specifications: 120V AC, 19.2 W power consumption
- - Coil Enclosure: Without Junction Box, Watertight
- - Coil Insulation Class: F
- - Seal Material: FPM
- - Electrical Connections: 1/2 in Conduit
- SJ-Type Cord
- - Mounting Orientation: Horizontal or Vertical
- - Compliance Standards: CSA, UL Listed
- - Includes: Coil and Seal
- - Overall Dimensions: Length 5-7/16 in
- Height 6-5/8 in
- - Thread Type: NPT
- - Valve Body Style: Straight
- - Media Compatibility: Water
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 8.20
- Package Weight: 3.50
