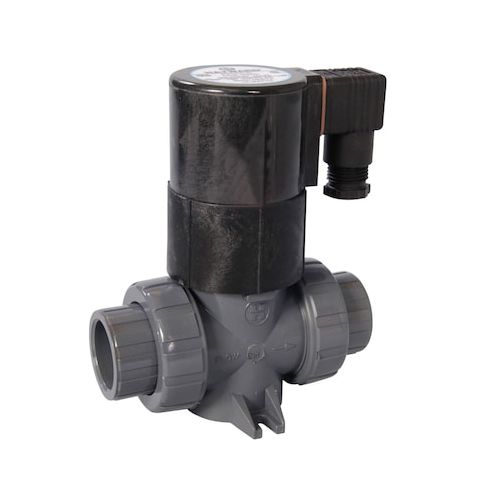

Solenoid Valve, 2-Way, Normally Closed, 1/2 in Pipe Size, 12V AC/DC, Inline Single, Direct Acting MPN:SV50050SV12AD

• The HAYWARD FLOW CONTROL SV50050SV12AD is a normally closed, direct acting solenoid valve designed with a PVDF valve body and an inline single valve type. It controls the flow of water with a maximum flow rate of 3.8 gallons per minute and a maximum operating pressure differential of 90 psi for water. The valve includes an coil and sealing components, and it can be installed in either horizontal or vertical orientations. It is rated for ambient temperatures between 10°F and 240°F, and fluid temperatures from 120°F up to 200°F. The valve features IPS inlet and outlet connection types with NPT threads and a 3/8 inch orifice diameter.

  Key Features:

  • - Valve Body Material: PVDF
  • - Seal Material: FPM
  • - Operation Type: Direct Acting
  • - Valve Starting Configuration: Normally Closed
  • - Valve Type: Inline Single
  • - Valve Ways: 2-Way
  • - Maximum Flow Rate: 3.8 gpm
  • - Maximum Operating Pressure Differential (Water): 90 psi
  • - Nominal Pipe Size: 1/2 in
  • - Orifice Diameter: 3/8 in
  • - Ambient Temperature Range: 10°F to 240°F
  • - Fluid Temperature Range: 120°F to 200°F (Water)
  • - Electrical Voltage: 12V AC/DC
  • - Coil Wattage: 19.2 W
  • - Coil enclosure: Watertight
  • requires junction box per applicable electrical codes
  • - Electrical Connections: 1/2 in Conduit
  • SJ-Type Cord
  • - Mounting Orientation: Horizontal or Vertical
  • - Environment: Indoor and outdoor use
  • - Compliance and Standards: CSA, UL Listed
  • - NEMA Enclosure Rating: 4
  • - Overall Dimensions: Length 5 in, Height 6-13/32 in
