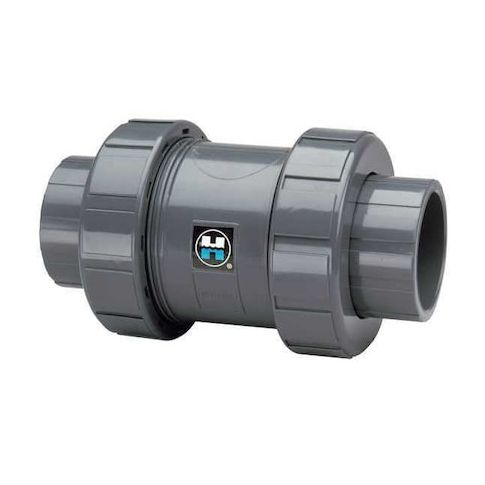

Check Valve, True Union, Ball, 3", CPVC/FPM, Flanged MPN:TC2300F
Free Shipping
In Stock
The Hayward True Union Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment, and industrial processes. Its single flow design and inline true union body ensure easy maintenance and replacement of the valve. Constructed with CPVC and FPM materials, this check valve is resistant to corrosion and can withstand high temperatures and pressures. With a flow rate of 150 gpm, it's ideal for systems requiring high water flow. Its compact design and flanged connections make it a versatile choice for a range of applications, including new installations and retrofits.
Top product features:
- True Union design allows for easy installation and removal without compromising the valve's seal.
- The valve has a single flow design to minimize pressure drop and maximize flow rate.
- The valve is designed to open at 3 psi, allowing for reliable backflow prevention.
Top product applications:
- Pool and spa equipment
- Water treatment systems
- Industrial fluid handling
HAYWARD FLOW CONTROL TC2300F is a 3 in. inline true union check valve with a ball check mechanism and flanged connections. It has a CPVC body and CPVC check mechanism for one-way flow in water handling and pump system applications within the listed specifications. The valve features a full-flow, single-flow design for one-way flow applications within the listed specifications.
Key Features:
- 3 in. nominal valve size with flange x flange connections
- CPVC body and CPVC ball check mechanism
- FPM/FKM/Viton seal and seat materials
- ANSI Flange Class: 150
- Cracking Pressure: 3 psi
- Flow Rate: 150 gpm
- Cv: 250
- Maximum Pressure: 150 psi at 70 degrees F
- Operating Temperature Range: 34 degrees F to 190 degrees F
- Mounting Position: Vertical (flow up)
- Mounting Orientation: Horizontal, Vertical
- NSF Certification: NSF 61
- Standards: ASTM D1784
- Overall Length: 10.56 in.
- Overall Height: 7-1/2 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.70
- Package Width: 9.60
- Package Height: 19.80
- Package Weight: 15.75
