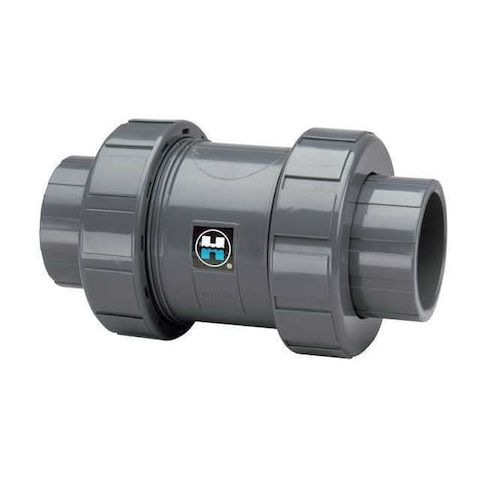

Check Valve, True Union, Ball, 4", CPVC/EPDM, Flanged MPN:TC2400FE

• HAYWARD FLOW CONTROL TC2400FE is a 4 in inline true union ball check valve for process piping systems handling water. It permits flow in one direction and closes to help prevent reverse flow. The valve features a CPVC body and check mechanism, EPDM seat and seal materials, a full-flow design, and 4 in flanged end connections.

  Key Features:

  • 4 in nominal valve size with 4 in flange x flange connections
  • Inline true union body design with ball check mechanism
  • CPVC body and check mechanism
  • EPDM seat and seal materials
  • Class 150 ANSI flanges
  • 3 psi cracking pressure
  • 275 gpm flow rate
  • Cv 400
  • Maximum pressure: 150 psi at 70 degrees F
  • Operating temperature range: 34 degrees F to 190 degrees F
  • Mounting positions: horizontal or vertical flow up
  • Full-flow design
  • NSF 61 certified
  • Meets ASTM D1784
