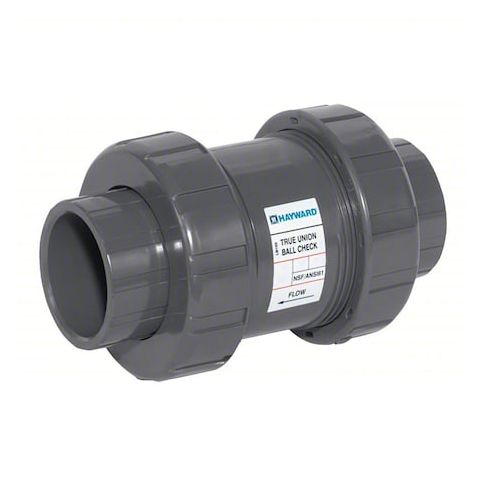

Check Valve, True Union, Ball, 1/2", PP/FPM, Threaded MPN:TC30050T
Free Shipping
In Stock
The Hayward True Union Ball Check Valve is a reliable and efficient solution for plumbing and piping systems. Designed for use in a variety of applications, including residential and commercial pools, water treatment systems, and industrial processes, this valve ensures one-way flow, preventing backpressure and damage to equipment. Its true union design allows for easy installation and maintenance, while the PP/FPM construction ensures durability and resistance to chemicals and corrosion. With a lead time of just 4 days, this valve is perfect for projects requiring quick turnaround and reliable performance.
Top product features:
- True Union design allows for easy installation and removal of the check valve
- Ball check valve design prevents backflow and ensures water flows in one direction
- PP/FPM materials provide a durable and chemical-resistant construction
Top product applications:
- Pool and Spa Equipment
- Well Pump Systems
- Hydrotherapy Systems
HAYWARD FLOW CONTROL TC30050T is a 1/2 in. ball check valve with a true union inline body and threaded FNPT x FNPT connections. It uses a free-moving ball and is configured for one-way flow and reverse-flow restriction. This valve is intended for general-purpose liquid handling and pump service
- it is constructed with a polypropylene body and FKM/Viton seals for applications requiring those materials. The full-flow design has a 6 gpm flow rate.
Key Features:
- Ball check mechanism for one-way flow control with automatic reverse-flow restriction
- 1/2 in. nominal valve size with 1/2 in. connections on both sides
- Threaded FNPT x FNPT end connections
- Polypropylene body
- FKM/Viton seal material
- Inline true union body style
- Single full-flow design
- Flow rate: 6 gpm
- Cv: 4.8
- Cracking pressure: 1.5 psi
- Temperature range: 40 degrees F minimum to 150 degrees F maximum
- Mounting positions: horizontal or vertical, including vertical flow up
- Standards: ASTM D1784, ASTM D4101
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 10.00
- Package Height: 10.00
- Package Weight: 0.49
