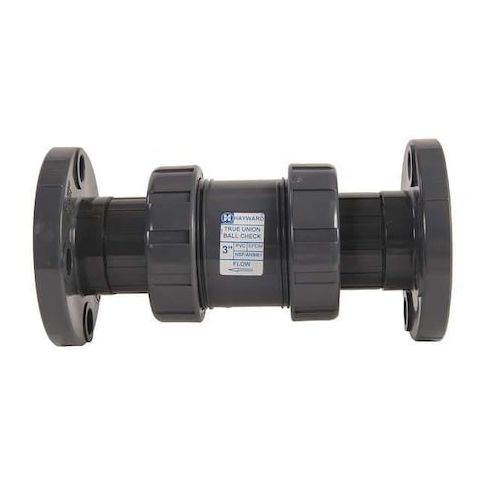

Check Valve, True Union, Ball, 3", PVC/EPDM, Flanged MPN:TC1300FE
Free Shipping
In Stock
The Hayward True Union Check Valve is a reliable and efficient solution for various applications, including water treatment, irrigation, and industrial processes. Its single flow design and inline true union body ensure easy installation and maintenance, while the PVC and EPDM materials provide durability and resistance to corrosion. With a max water pressure of 150 psi and a flow rate of 150 gpm, this check valve is suitable for a wide range of applications, including vertical mounting. Its compact design and moderate pressure rating make it an ideal choice for various industries where reliable flow control is essential.
Top product features:
- True Union design allows for easy disconnection and reconnection of the valve
- Single flow design allows for unidirectional flow of fluid
- EPDM seal material provides a temperature-resistant and durable seal up to 140°F
Top product applications:
- Drainback pool heater systems
- Hydronic heating systems
- Water treatment systems
HAYWARD FLOW CONTROL TC1300FE is a 3 in true union ball check valve with an inline PVC body, PVC check mechanism, and EPDM seal and seat materials. It is configured for one-direction flow and reverse-flow check applications in general purpose and pump systems handling water. The valve features a single-flow, full-flow design with a 3 psi cracking pressure and flanged end connections.
Key Features:
- 3 in nominal valve size with 3 in flange x flange connections
- Inline true union body design for piping installations requiring union connections
- Ball check mechanism with PVC internal components
- PVC body construction with EPDM seal and seat materials
- For water service
- applications include general purpose systems and pumps
- Flow rate: 150 gpm
- Cv: 250
- Cracking pressure: 3 psi
- Maximum pressure: 150 psi at 70 degrees F
- Operating temperature range: 34 to 140 degrees F
- Mounting positions: horizontal, vertical, vertical flow up
- ANSI flange class: Class 150
- NSF 61
- Standards: ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.60
- Package Width: 9.70
- Package Height: 19.90
- Package Weight: 14.66
