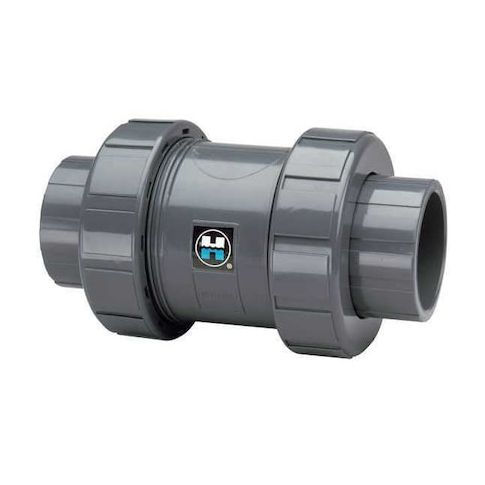

Check Valve, True Union, Ball, 6", CPVC/EPDM, Flanged MPN:TC2600FE
Free Shipping
In Stock
The Hayward True Union Ball Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment plants, and industrial processes. Its true union design allows for easy installation and maintenance, while the ball check mechanism ensures smooth and quiet operation. The CPVC/EPDM construction provides excellent chemical resistance and durability, making it suitable for a wide range of temperatures and pressures. With a flow rate of 275 gpm and a cracking pressure of 3 psi, this valve is ideal for applications where high flow rates and low pressure drops are required.
Top product features:
- True Union design allows for easy removal and installation of the valve without disturbing the surrounding piping.
- The valve has a single flow design for reduced pressure loss and increased flow rates.
- The EPDM seat and seal materials provide a reliable and durable seal for high-temperature and high-pressure applications.
Top product applications:
- Pool and Spa Systems
- Water Distribution Systems
- Industrial Process Control
HAYWARD FLOW CONTROL TC2600FE is a 6 in inline true union ball check valve for process piping. It features a CPVC body and check mechanism with EPDM seal and seat materials. This valve is intended for water applications requiring one-way flow and reverse-flow control. It has a full-flow, single-flow design with flanged connections on both ends.
Key Features:
- Check valve type: Ball check mechanism with inline true union body design
- Size and connections: 6 in nominal valve size with flange x flange, Class 150 flanged ends
- Materials: CPVC body and check mechanism
- EPDM seal and seat
- Flow specifications: Cv 340
- rated flow 275 gpm
- full flow: Yes
- Pressure rating: 150 psi at 70 degrees F maximum water pressure
- 150 psi maximum operating pressure
- Temperature range: 34 degrees F minimum operating temperature
- 190 degrees F maximum operating temperature
- Cracking pressure: 3 psi
- Mounting: Vertical (Flow Up)
- Media/application: Water
- process piping
- Certifications/standards: NSF 61
- ASTM D1784
- Dimensions: 19.19 in overall length
- 11 in overall height
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.10
- Package Width: 14.90
- Package Height: 20.80
- Package Weight: 35.70
