Check Valve, True Union, Ball, 4", CPVC/FPM, Threaded MPN:TC2400T
Free Shipping
In Stock
The Hayward True Union Ball Check Valve is a reliable and efficient solution for various applications, including water treatment, irrigation, and industrial processes. Its flow design allows for single-direction flow, preventing backflow and ensuring a safe and consistent water supply. Constructed with CPVC and FPM materials, this valve can withstand temperatures from 40°F to 190°F and pressures up to 150 psi. Its compact design and true union connection make it easy to install and maintain. Ideal for use in vertical orientations, this valve is perfect for applications where a reliable check valve is essential.
Top product features:
- True Union design allows for easy disconnection and reconnection of the valve
- Viton seal material provides resistance to high temperatures and chemicals
- Flow design is optimized for single direction flow, preventing backflow and ensuring safe operation
Top product applications:
- Water treatment systems
- Plumbing for pools and hot tubs
- Industrial process control

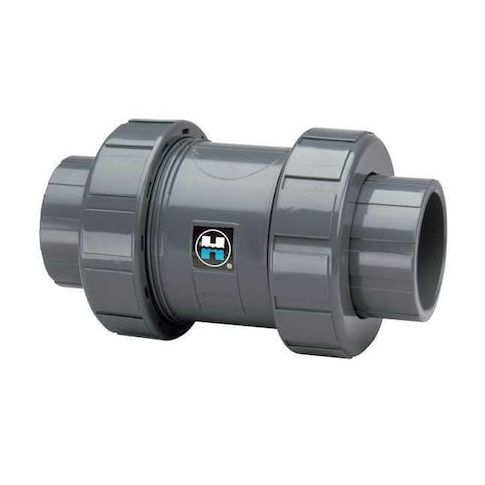

HAYWARD FLOW CONTROL TC2400T is a 4 in. true union ball check valve for process piping. It uses an inline CPVC body with a CPVC ball check mechanism intended for one-way flow control in compatible water systems. This valve features female NPT threaded connections on both ends, a full-flow design, and may be mounted horizontally or vertically, including vertical flow up.
Key Features:
- - Valve type: true union ball check valve with inline body style
- - Body material: CPVC
- - Ball check mechanism material: CPVC
- - Seal and seat material: FPM/FKM
- seal material also listed as Viton
- - Connection size: 4 in. on both ends
- - Connection type: FNPT x FNPT threaded female connections
- - Flow capacity: 275 gpm
- - Cv rating: 400
- - Cracking pressure: 3 psi
- - Pressure rating: 150 psi at 70 degrees F
- - Operating temperature range: 34 degrees F to 190 degrees F
- - Mounting positions: horizontal or vertical, including vertical flow up
- - Standards: NSF 61, ASTM D1784
- - Full-flow design
- - Overall length: 12.94 in.
- - Overall height: 8-9/16 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 9.30
- Package Height: 13.40
- Package Weight: 19.00
