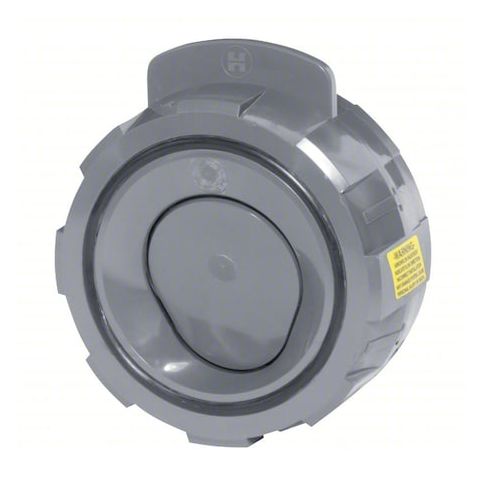

Swing Check Valve, WCV Series, 10 in, Wafer Connection, Inline, PVC Body MPN:WCV11000E
The Hayward Check Valve is a reliable and efficient solution for managing fluid flow in various applications. Ideal for use in pools, spas, and water treatment systems, this valve prevents backflow and ensures smooth operation. Its compact design and ease of installation make it a great addition to any system. The Hayward Check Valve is perfect for new installations or as a replacement for existing valves. With its long-lasting performance and minimal maintenance requirements, it's a great choice for professionals and DIYers alike. Its durability and reliability make it a great value for the price.
Top product features:
- Check Valve automatically allows fluid to flow in one direction while preventing backflow.
- Check Valve is designed to prevent water from flowing backwards through the system, reducing the risk of contamination and damage.
- Check Valve is a one-way valve that ensures a consistent flow of water, maintaining system pressure and performance.
Top product applications:
- Pool Plumbing System
- Pumping System
- Water Treatment System
The HAYWARD FLOW CONTROL WCV11000E is a 10 in. inline swing check valve configured for one-way flow applications with a swing check mechanism that responds to reverse flow. It features a PVC body, a 316 stainless steel swing mechanism, and an EPDM seal. The valve is intended for use with corrosive chemicals in piping systems using a check valve for reverse-flow reduction. It has wafer connections on both sides and can be mounted horizontally or vertically.
Key Features:
- 10 in. inline swing check valve
- Swing check mechanism for one-way flow control
- PVC body
- 316 stainless steel check mechanism
- EPDM seal
- 10 in. connection size on side 1 and side 2
- Wafer connections on both sides
- 2-way valve configuration
- For use with corrosive chemicals
- Maximum operating pressure: 150 psi
- Operating temperature range: 34 degrees F to 140 degrees F
- Cv: 2,249
- Mounting orientation: horizontal or vertical
- ANSI 150 and ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 8.00
- Package Height: 4.00
- Package Weight: 1.00
