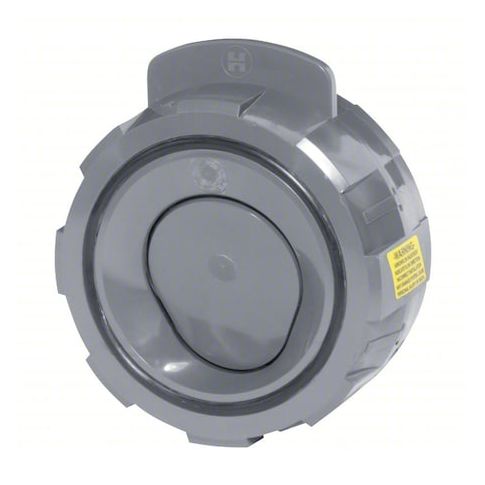

Swing Check Valve, WCV Series, Inline, 10 in, Wafer Connection, CPVC Body MPN:WCV21000VH
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment, and industrial processes. It prevents backflow and ensures a one-way flow of water, reducing the risk of contamination and damage to equipment. With a durable design and long-lasting performance, this check valve is ideal for use in high-pressure and high-flow systems. Its compact size and easy installation make it a convenient choice for plumbers, engineers, and DIY enthusiasts. Suitable for a wide range of applications, the Hayward Check Valve provides peace of mind and worry-free operation.
Top product features:
- Check Valve allows fluid to flow in one direction while preventing backflow.
- Check Valve is designed to prevent water from flowing backwards through the system.
- Check Valve is constructed to withstand standard water pressure.
Top product applications:
- Pool plumbing
- Wastewater treatment
- Hydraulic systems
The HAYWARD FLOW CONTROL WCV21000VH is a 10 in swing check valve with an inline wafer body. It uses a hinged swing mechanism to allow flow in one direction and close when flow reverses, intended to limit reverse flow in piping systems. Constructed with CPVC, 316 stainless steel, FKM, and Hastelloy materials for use with compatible media, this valve is used for chemical handling applications when the valve materials are compatible with the specific media and operating conditions.
Key Features:
- Hinged swing check mechanism operates in response to reverse flow.
- 10 in nominal valve size with 10 in wafer connections on both sides.
- CPVC body with 316 stainless steel check mechanism.
- FKM seal and Hastelloy spring materials.
- Maximum operating pressure: 150 psi.
- Operating temperature range: 34°F to 140°F.
- Mounting orientation: horizontal or vertical.
- Flow coefficient (Cv): 2,249.
- Inline body style with 2-way valve configuration.
- Standards: ANSI 150, ASTM D1784.
- Silent check: standard.
- Counterweight: none.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.30
- Package Width: 21.30
- Package Height: 12.00
- Package Weight: 32.30
