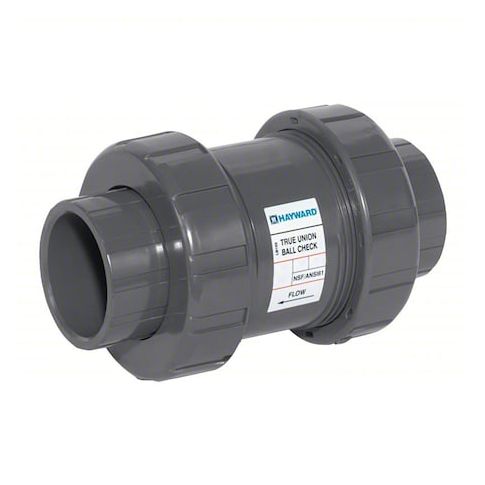

Ball Check Valve, TC Series, Inline, 1 in NPT x 1 in NPT, Polypropylene Body MPN:TC30100TE
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment plants, and industrial processes. Its compact design and lightweight construction make it easy to install and maintain, ensuring minimal downtime and maximum performance. The valve's ability to prevent backflow and pressure surges helps to protect equipment and prevent damage, while its durable materials ensure a long lifespan. Suitable for use in a range of environments, the Hayward Check Valve is a trusted choice for professionals and DIY enthusiasts alike, providing peace of mind and reliable operation.
Top product features:
- It allows fluid to flow in one direction while preventing backflow.
- It is designed to be used in conjunction with pumps and other fluid-handling equipment.
- It has a compact design that fits within a specific dimensional footprint.
Top product applications:
- Pool Circulation Systems
- Swimming Pool Plumbing Systems
- Water Treatment Systems
HAYWARD FLOW CONTROL TC30100TE is an inline ball check valve for one-way flow control in liquid handling and process lines. It uses a ball check mechanism to allow flow in one direction and check reverse flow in compatible liquid handling and process lines. The valve has a polypropylene body with EPDM seal and seat materials, 1 in NPT connections, and a 1.5 psi cracking pressure. It is specified for corrosive chemical media compatible with polypropylene and EPDM materials and provides 1 in NPT connections and specified material compatibility for compatible piping systems.
Key Features:
- - Valve type: Ball check valve with a 2-way inline body style.
- - Body material: Polypropylene.
- - Check mechanism: Ball.
- - Connection size: 1 in on side 1 and 1 in on side 2.
- - Connection type: NPT on both sides.
- - Flow capacity: Cv 11.
- - Cracking pressure: 1.5 psi.
- - Media compatibility: Corrosive chemical media compatible with polypropylene and EPDM materials.
- - Operating pressure: Maximum 235 psi.
- - Operating temperature range: 20 degrees F to 70 degrees F.
- - Mounting orientation: Horizontal or vertical.
- - Seal material: EPDM.
- - Seat material: EPDM.
- - Overall height: 5 7/8 in.
- - Standards: ASTM D1784, ASTM D4101.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 12.00
- Package Weight: 0.70
