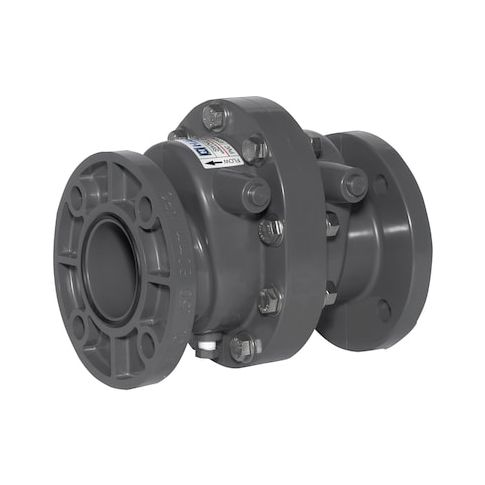

Swing Check Valve, SW Series, 6 in, Flanged, CPVC, Inline, 15.75 in Overall L MPN:SW2600VC
The Hayward CPVC Swing Check Valve is a reliable and efficient solution for managing water flow in various applications. Suitable for horizontal and vertical installations, this valve features a swing mechanism and CPVC body, providing a durable and corrosion-resistant option. With a maximum water pressure of 150 psi, it can handle demanding systems. Its compact size makes it ideal for use in residential and commercial plumbing, as well as in industrial settings. The valve's full flow capability and low lead time make it a convenient choice for projects of all sizes, ensuring smooth and uninterrupted water flow.
Top product features:
- Swing mechanism allows for easy installation and removal
- Flanged connection type enables secure attachment to pipes
- FPM seal material provides a reliable and durable closure
Top product applications:
- Pool and Spa Systems
- Water Treatment and Filtration Systems
- Industrial Process Control and Piping Systems
HAYWARD FLOW CONTROL SW2600VC is a 6 in. CPVC swing check valve with a flanged inline body for directional water flow control. It uses a swing check mechanism to restrict reverse flow in piping systems specified for CPVC construction, full-flow valve configuration, and flanged Class 150 connections. The valve can be mounted horizontally or vertically and includes a counterweight.
Key Features:
- Valve type: CPVC swing check valve for directional flow control
- Body and mechanism material: CPVC
- Valve size: 6 in. nominal size with 6 in. connections on both sides
- Connections: Flange x flange, ANSI Flange Class 150
- Body style: Inline
- Check mechanism: Swing
- Media: Water
- Flow rating: 650 gpm
- Cv: 80
- Cracking pressure: 3 psi
- Pressure rating: 150 psi maximum operating pressure
- 150 psi at 70 degrees F maximum water pressure
- Temperature range: 34 degrees F to 180 degrees F
- Seal and seat material: FKM
- Mounting orientation: Horizontal or vertical
- Full-flow valve configuration: Yes
- Counterweight: Included
- Silent check feature: Standard
- Standards: ASTM D1784
- Overall dimensions: 15.75 in. overall length, 15 5/8 in. overall height, 14 49/64 in. width
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.12
- Package Width: 17.12
- Package Height: 20.68
- Package Weight: 56.00
