Swing Check Valve, SW Series, 3 in, Flanged, CPVC Body, Inline, 10.24 in Overall L MPN:SW2300VC
Swing Check Valve, SW Series, 3 in, Flanged, CPVC Body, Inline, 10.24 in Overall L

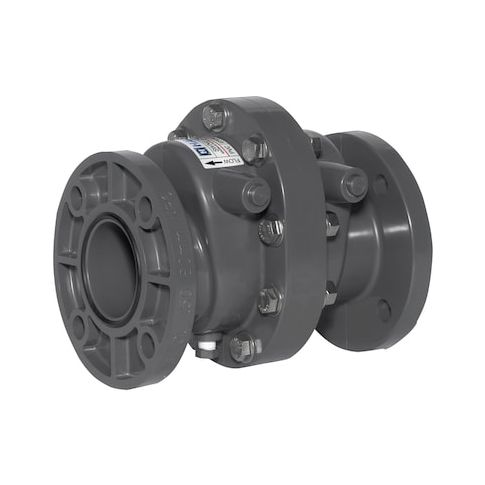

HAYWARD FLOW CONTROL SW2300VC is a 3 in. CPVC swing check valve with an inline body and flanged connections on both ends. It is intended for one-direction water flow applications and includes a swing check mechanism to help limit reverse flow. The valve features a CPVC body and CPVC swing mechanism for water handling systems compatible with CPVC valve materials.
Key Features:
- 3 in. nominal valve size with 3 in. flange connections on side 1 and side 2
- Swing check mechanism with inline body style
- CPVC body and CPVC check mechanism
- FKM seal and FKM seat material
- ANSI flange class: Class 150
- Maximum water pressure: 150 psi at 70 degrees F
- Maximum operating pressure: 150 psi
- Cracking pressure: 3 psi
- Flow rating: 150 gpm
- Cv: 150
- Full flow configuration
- Mounting orientation: horizontal or vertical
- Operating temperature range: 34 degrees F to 180 degrees F
- Counterweight included
- Standard: ASTM D1784
- Overall dimensions: 10.24 in. L x 8 13/16 in. W x 8 61/64 in. H
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.37
- Package Width: 9.06
- Package Height: 11.50
- Package Weight: 14.00
