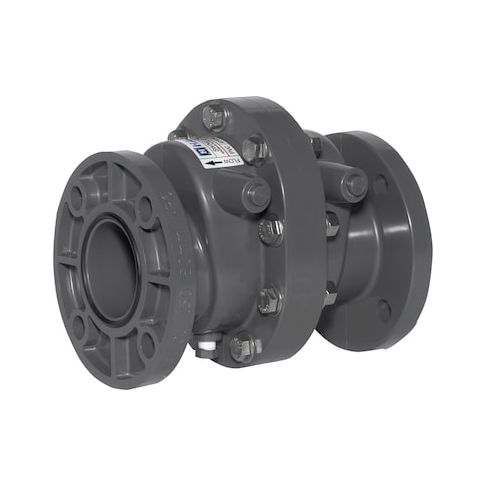

Check Valve, SW Series, Swing, Inline, PVC Body, 8 in Flanged, 19.69 in Overall L MPN:SW1800E

• HAYWARD FLOW CONTROL SW1800E is an 8 in inline swing check valve with flanged connections on both ends. It is designed to allow water flow in one direction and close to limit reverse flow in piping and process systems. The PVC body and swing check mechanism are paired with EPDM seal and seat materials. The full-flow design has a flow capacity of 1,100 gpm and a Cv of 250.

  Key Features:

  • Swing check valve mechanism for one-direction flow applications
  • Inline body style with flanged end connections
  • Connection size: 8 in on side 1 and 8 in on side 2
  • Connection type: Flange x Flange, ANSI Flange Class 150
  • Body and mechanism material: PVC
  • Seal and seat material: EPDM
  • Flow capacity: 1,100 gpm
  • Cv: 250
  • Cracking pressure: 3 psi
  • Maximum operating pressure: 150 psi
  • maximum water pressure: 150 psi at 70 degrees F
  • Operating temperature range: 34 degrees F to 140 degrees F
  • Mounting orientation: horizontal or vertical
  • Standard: ASTM D1784
  • Overall length: 19.69 in
  • overall height: 20 in
