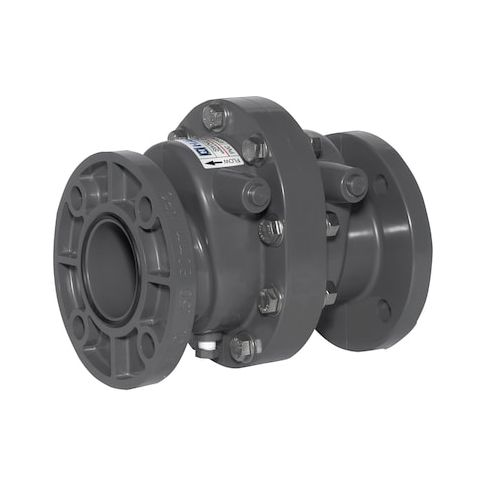

Swing Check Valve, SW Series, 4 in, Flanged, CPVC Body, Inline, 11.81 in Overall L MPN:SW2400E
The Hayward CPVC Swing Check Valve is a reliable and efficient solution for various industrial and commercial applications. This valve is designed to allow full flow in one direction while preventing backflow, making it ideal for use in water treatment, irrigation, and plumbing systems. Its CPVC body and EPDM seals ensure long-lasting durability and resistance to corrosion and wear. With a maximum water pressure rating of 150 psi, this valve is suitable for a wide range of applications, including high-pressure systems. Its compact design and easy installation make it a popular choice among professionals and DIY enthusiasts alike.
Top product features:
- Swing mechanism allows for unobstructed flow when not in use
- Body is made of CPVC, a corrosion-resistant material
- EPDM seal provides a reliable and leak-free closure
Top product applications:
- Hot Water Heating Systems
- Swimming Pool Circulation Systems
- Steam-Free Plumbing Systems
HAYWARD FLOW CONTROL SW2400E is a 4 in. CPVC swing check valve with a flanged inline body for one-way water flow applications and reverse-flow control. The swing mechanism and EPDM seat and seal are for water handling systems with a full-flow inline body design, and the valve can be installed in horizontal or vertical orientation.
Key Features:
- 4 in. CPVC body with CPVC swing check mechanism
- Flanged connections on both sides
- ANSI Flange Class 150
- Full-flow inline body design with swing check mechanism
- Media: water
- Maximum operating pressure: 150 psi
- Maximum water pressure: 150 psi at 70 degrees F
- Cracking pressure: 3 psi
- Flow rate: 275 gpm
- Cv: 80
- Operating temperature range: 34 degrees F to 180 degrees F
- Mounting orientation: horizontal or vertical
- Seal material: EPDM
- Seat material: EPDM
- Overall length: 11.81 in.
- Overall height: 11 3/8 in.
- Width: 10 61/64 in.
- Standard: ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.18
- Package Width: 11.56
- Package Height: 13.00
- Package Weight: 21.40
