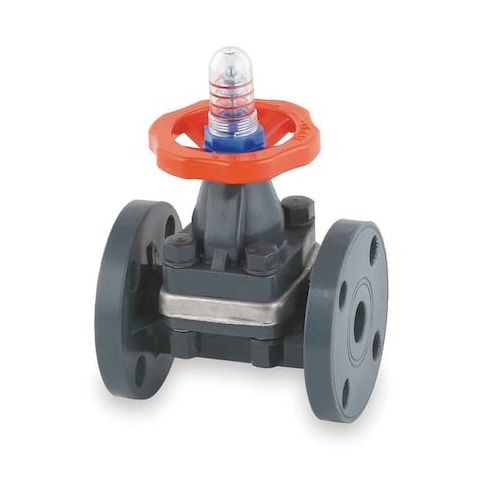

Diaphragm Valve, True Union, 1", PVC/EPDM, S/T MPN:DAB1010UEE
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2051217
Diaphragm Valve, True Union, 1", PVC/EPDM, S/T
The Hayward Diaphragm Valve is a reliable and efficient solution for controlling chemicals in various applications. Its true union design and 1-inch PVC/EPDM construction ensure a secure and leak-free connection. With a Cv of 10 and maximum operating pressure of 150 psi, this valve can handle demanding chemical processes. Its 2-way design and wheel handle make it easy to operate, while the position indicator provides visual confirmation of valve status. Suitable for use in chemical processing, laboratories, and other industries, this valve offers a high level of precision and control, making it an ideal choice for applications requiring precise chemical dosing and mixing.
Top product features:
- True Union design allows for easy disconnection and reconnection of the valve for maintenance or replacement.
- Diaphragm material EPDM provides chemical resistance for handling media such as chemicals.
- Position Indicator feature allows the user to visually confirm the valve's position.
Top product applications:
- Water Treatment Systems
- Chemical Feed Systems
- Pumping Stations
Manual Diaphragm Valve, Coefficient of Volume (Cv) 10, Nominal Valve Size 1 in, Connection Type - Side 1 NPT, Connection Type - Side 2 Socket, For Media Chemicals, Standards ASTM D1784, Diaphragm Material EPDM, Seal Material EPDM, Maximum Pressure - Operating 150 psi, Operating Temperature - Maximum 140 Degrees F, Diaphragm Valve Type 2-Way, Handle Type Wheel, Body Material PVC, Special Features Position Indicator, Inlet Connection Gender Not Applicable, Overall Length 5.2 in
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 5.30
- Package Height: 8.90
- Package Weight: 2.66
Product info last updated on January 19, 2026 6:31pm UTC
Category: Pipes, Valves and Fittings
