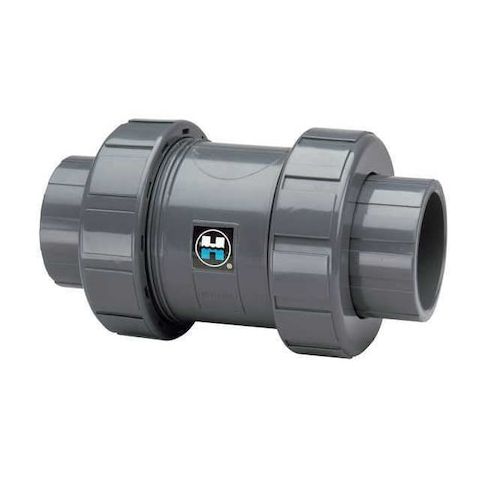

Check Valve, True Union, Ball, 2", CPVC/FPM, Flanged MPN:TC20200F
Free Shipping
In Stock
The Hayward True Union Check Valve is a reliable and efficient solution for various applications, including swimming pools, water treatment systems, and plumbing installations. This CPVC/FPM check valve features a ball mechanism and a true union design for easy installation and maintenance. With a maximum temperature rating of 190°F and a maximum water pressure rating of 235 psi, it can handle demanding conditions. The valve's Viton seals ensure a tight seal and long lifespan. Suitable for vertical mounting, it's an ideal choice for applications where flow control and backflow prevention are crucial, providing a safe and efficient solution for water circulation.
Top product features:
- True Union design allows for easy disconnection and reconnection of the valve without disturbing the surrounding piping.
- The valve has a single flow design, allowing for unidirectional flow and preventing backflow.
- The valve is designed for vertical mounting orientation.
Top product applications:
- Pools and hot tubs
- Industrial water treatment systems
- HVAC systems
HAYWARD FLOW CONTROL TC20200F is a 2 in. inline true union ball check valve with a CPVC body and flanged connections. It is intended for one-direction flow applications and reverse-flow reduction in general-purpose and pump systems handling water. The valve features a single-flow, full-flow design with a 3 psi cracking pressure and is specified for horizontal or vertical mounting orientations, including vertical flow up.
Key Features:
- 2 in. nominal valve size with flange x flange connections
- ANSI Flange Class 150
- CPVC body and CPVC check mechanism
- Ball check mechanism in an inline true union body style
- Seal and seat materials: FPM/FKM/Viton
- Rated flow: 70 gpm
- Cv: 130
- Maximum pressure: 150 psi at 70 degrees F
- maximum water pressure: 235 psi at 70 degrees F
- Operating temperature range: 34 degrees F to 190 degrees F
- NSF 61 certified
- ASTM D1784
- Overall dimensions: 8 in. L x 6 in. H x 6 in. W
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 6.40
- Package Height: 12.30
- Package Weight: 6.90
