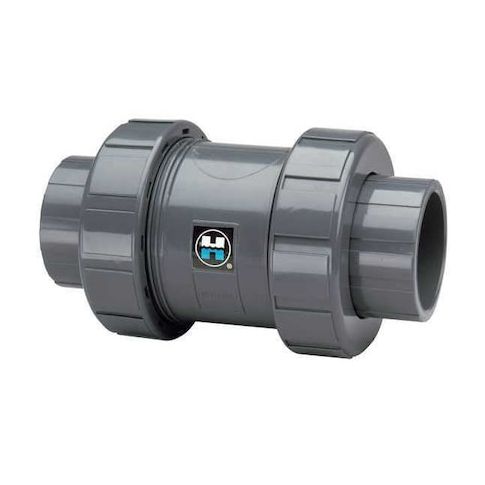

Check Valve, True Union, Ball, 3", PVC/FPM, Flanged MPN:TC1300F
Free Shipping
In Stock
The Hayward True Union Ball Check Valve is a reliable and efficient solution for various applications, including water treatment, irrigation, and industrial processes. Its PVC/FPM construction ensures durability and resistance to corrosion, while the Viton seal provides a tight shut-off at low pressure. With a flow rate of 150 gpm and a maximum water pressure of 150 psi, this valve is suitable for a wide range of systems. Its true union design allows for easy installation and maintenance, making it an ideal choice for applications where flexibility and convenience are crucial.
Top product features:
- True Union design allows for easy disconnection and reconnection of the valve
- Single flow design enables efficient water flow through the valve
- Viton seals provide reliable sealing and resistance to high temperatures
Top product applications:
- Pool and spa systems
- Water treatment and filtration systems
- Industrial piping and plumbing applications
HAYWARD FLOW CONTROL TC1300F is a 3 in inline true union ball check valve with a PVC body and flanged end connections. It is intended for one-way water flow and reverse-flow control in general-purpose and pump systems. The single-flow design uses a PVC ball mechanism with FPM sealing and has a flow rating of 150 gpm.
Key Features:
- 3 in nominal valve size with flange x flange connections
- PVC body and PVC check mechanism
- Ball check mechanism with inline true union body design
- Seal/seat material: FPM/FKM/Viton
- ANSI flange class: Class 150
- Cracking pressure: 3 psi
- Flow rating: 150 gpm
- Cv: 250
- Maximum pressure: 150 psi at 70 degrees F
- Operating temperature range: 34 degrees F to 140 degrees F
- Mounting position: vertical flow up
- refer to manufacturer specifications for additional orientation compatibility
- NSF 61 certified
- Standards: ASTM D1784
- Overall length: 10.56 in
- Overall height: 7 1/2 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 9.70
- Package Height: 19.60
- Package Weight: 14.75
