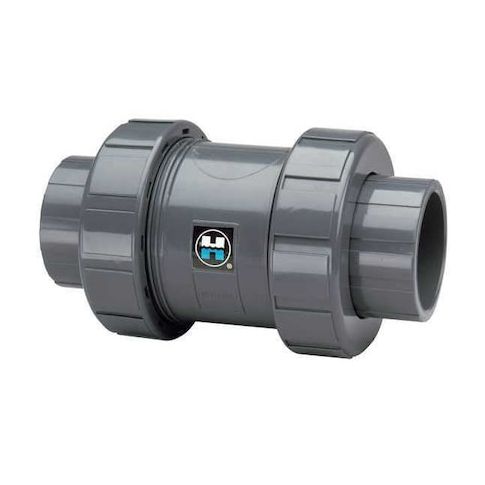

Check Valve, True Union, Ball, 2-1/2", CPVC/EPDM, Threaded MPN:TC2250TE

• The HAYWARD FLOW CONTROL TC2250TE is a 2-1/2 in true union ball check valve with an inline CPVC body, CPVC check mechanism, and EPDM seat and seal materials. It is intended for one-way flow in water piping and pump system applications within listed specifications and includes a ball check mechanism for one-way flow applications. The threaded FNPT x FNPT connections and true union configuration are specified for compatible piping systems. This valve features a full-flow, single-flow design with a 100 gpm flow rating and a Cv of 170.

  Key Features:

  • Valve type: True union ball check valve with inline body design.
  • Size: 2-1/2 in nominal valve size with 2-1/2 in FNPT x FNPT threaded connections.
  • Materials: CPVC body and check mechanism with EPDM seat and seal.
  • Flow specifications: Full-flow design, 100 gpm flow rating, Cv 170.
  • Cracking pressure: 3 psi.
  • Pressure rating: 150 psi at 70 degrees F.
  • Temperature range: 34 degrees F to 190 degrees F operating temperature.
  • Mounting: Horizontal or vertical
  • vertical flow-up position listed.
  • Media: Water.
  • Standards: NSF 61, ASTM D1784.
  • Overall dimensions: 10.68 in overall length
  • 6 9/16 in overall height and width.
