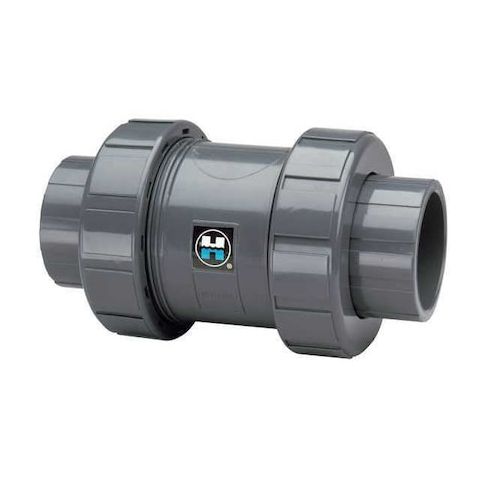

Check Valve, True Union, Ball, 2-1/2", CPVC/FPM, Socket MPN:TC2250S

HAYWARD FLOW CONTROL TC2250S is a 2-1/2 in. true union ball check valve with an inline CPVC body and socket x socket connections. It is intended for one-direction flow applications and to close in response to reverse-flow conditions in general-purpose and pump systems. The ball check mechanism uses a CPVC check element with FPM/FKM/Viton sealing materials. Flow rating: 100 gpm.

Key Features:

• 2-1/2 in. nominal valve and pipe size with female socket connections on both ends
• Inline true union body design for serviceable installation in piping systems
• CPVC body and CPVC check mechanism
• Ball check mechanism with single-flow design
• Seal/seat material: FPM/FKM/Viton
• Cracking pressure: 3 psi
• Flow rating: 100 gpm
• Cv: 170
• Maximum pressure: 150 psi at 70 degrees F
• Operating temperature range: 34 degrees F to 190 degrees F
• Mounting positions: horizontal or vertical, including vertical flow-up installation
• NSF 61 and ASTM D1784
