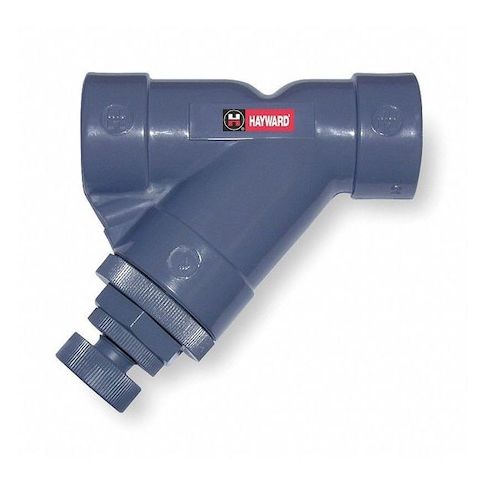

Y-Check Valve, Spring-Loaded, 1", PVC/FPM, Threaded, Adjustable 2-15 psi MPN:SLC10100TE
Free Shipping
In Stock
The Hayward Y-Check Valve is a reliable and adjustable solution for various applications, including pool and spa systems, water treatment, and industrial processes. Its spring-loaded design ensures a tight seal, while the adjustable pressure range from 2-15 psi provides flexibility in different operating conditions. Made with durable PVC and FPM materials, this valve can withstand temperatures up to 140°F and pressures up to 150 psi. Its compact size and horizontal/vertical mounting orientation make it suitable for a wide range of applications, including water circulation, filtration, and backwashing systems.
Top product features:
- Adjustable cracking pressure between 2-15 psi
- Flow design allows for single direction flow
- Spring-loaded mechanism provides inline operation
Top product applications:
- Water Treatment Systems
- Hydronic Heating Systems
- Pools and Hot Tubs
HAYWARD FLOW CONTROL SLC10100TE is a 1 in spring-loaded Y-check valve for general-purpose water service. This PVC valve uses a spring-loaded piston-style check mechanism for one-way flow applications in threaded piping systems. It is specified for horizontal or vertical mounting with FNPT x FNPT connections.
Key Features:
- Spring check valve with Y-style body and inline spring mechanism
- 1 in nominal valve size with FNPT x FNPT threaded female connections
- PVC body and PVC check mechanism
- EPDM seal with PVC seat material
- Cracking pressure: 2.0 psi
- Adjustable pressure range: 2 to 15 psi
- Flow rating: 15 gpm
- Cv: 9
- Maximum pressure: 150 psi at 70 degrees F
- Operating temperature range: 40 to 140 degrees F
- Mounting orientation: horizontal or vertical
- Meets ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 3.70
- Package Height: 8.10
- Package Weight: 1.55
