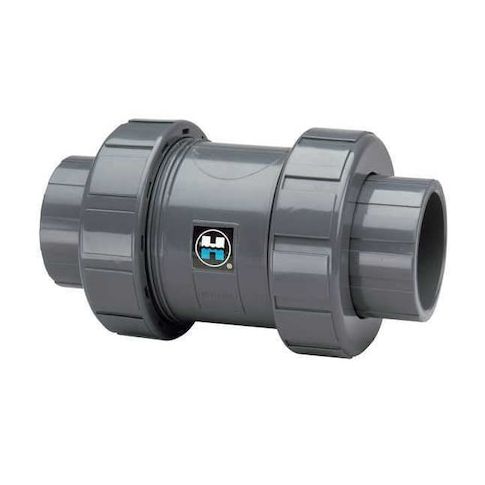

Check Valve, True Union, Ball, 3", PVC/EPDM, Threaded MPN:TC1300TE
Free Shipping
In Stock
The Hayward True Union Ball Check Valve is a reliable and efficient solution for various applications, including water treatment, irrigation, and industrial processes. Its single-flow design and inline true union body ensure smooth operation and easy maintenance. Made from durable PVC and EPDM materials, this valve can withstand temperatures ranging from 40°F to 140°F and pressures up to 150 psi. With a flow rate of 150 gpm, it's ideal for large-scale operations. Its compact size and threaded connections make it easy to install and integrate into existing systems, making it a valuable addition to any facility's plumbing infrastructure.
Top product features:
- True Union design allows for easy installation and maintenance by providing a connection point for disassembly and reassembly of the valve.
- The valve has a single flow design, which enables a smooth and unobstructed flow of fluid through the valve.
- The valve is designed with an EPDM seat and seal, which provides a durable and chemical-resistant seal to prevent leaks and ensure safe and reliable operation.
Top product applications:
- Drinking water treatment and distribution systems
- Swimming pools and hot tubs
- Industrial process control systems
HAYWARD FLOW CONTROL TC1300TE is a 3 in true union ball check valve with an inline PVC body, PVC check mechanism, and EPDM seat and seal materials. It is intended for one-way flow direction control in general purpose and pump systems handling water. The valve features FNPT x FNPT threaded female connections, a full-flow design, 3 psi cracking pressure, and a rated flow of 150 gpm.
Key Features:
- 3 in nominal valve and pipe size
- Inline true union body design with ball check mechanism
- PVC body and PVC check mechanism
- EPDM seat and seal materials
- FNPT x FNPT threaded connections with female ends on both sides
- Rated flow: 150 gpm
- Cv: 250
- Cracking pressure: 3 psi
- Maximum operating pressure: 150 psi at 70 degrees F
- Operating temperature range: 34 degrees F to 140 degrees F
- Mounting positions: horizontal, vertical, and vertical flow up
- NSF 61
- Standards: ASTM D1784
- Overall length: 10.56 in
- Overall height: 6 9/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.40
- Package Width: 7.30
- Package Height: 12.30
- Package Weight: 10.11
