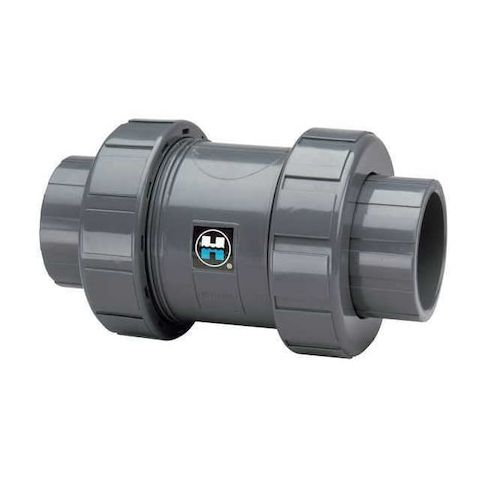

Check Valve, True Union, Ball, 4", PVC/EPDM, Flanged MPN:TC1400FE
Free Shipping
In Stock
The Hayward True Union Ball Check Valve is a reliable and efficient solution for various applications. Suitable for use in vertical piping systems, this valve features a single flow design and a cracking pressure of 3 psi. Constructed from durable PVC and EPDM materials, it can withstand temperatures up to 140°F and pressures up to 150 psi. Ideal for use in water systems, the valve's 275 gpm flow rate ensures smooth operation. Its true union design allows for easy maintenance and replacement, making it a valuable asset for industrial, commercial, and residential applications.
Top product features:
- True Union design allows for easy installation and removal
- Single flow design allows for unidirectional flow
- EPDM seals provide a high-temperature and chemical-resistant sealing capability
Top product applications:
- Pool and spa systems
- Well water treatment systems
- Industrial water circulation systems
The HAYWARD FLOW CONTROL TC1400FE is a 4 in inline true union ball check valve with flanged connections on both ends. It is designed for process piping and water service and is configured to allow flow in one direction and close in response to reverse flow. The PVC body and PVC check mechanism pair with EPDM seal and seat materials, and the valve has a 275 gpm flow rating with 3 psi cracking pressure.
Key Features:
- 4 in nominal valve and pipe size with flange x flange connections
- Inline true union body design with ball check mechanism
- PVC body and PVC check mechanism
- EPDM seal and seat materials
- Flow rating: 275 gpm
- Cv: 400
- Cracking pressure: 3 psi
- Maximum pressure: 150 psi at 70 degrees F
- Operating temperature range: 34 degrees F to 140 degrees F
- Mounting position: Horizontal, vertical, and vertical flow up
- ANSI flange class: Class 150
- NSF Certification: NSF 61
- Standards: ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 9.60
- Package Height: 19.70
- Package Weight: 24.60
