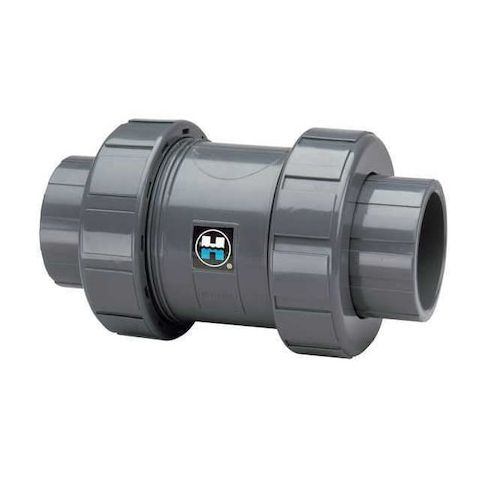

Check Valve, True Union, Ball, 1", CPVC/FPM, Flanged MPN:TC20100F
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment plants, and industrial processes. Its true union design allows for easy installation and maintenance, while its CPVC/FPM construction ensures durability and resistance to corrosion. With a maximum water pressure of 235 psi and a flow rate of 18 gpm, this check valve is perfect for high-pressure applications. Its compact size and flanged connection make it easy to integrate into existing systems, providing a seamless flow of water and minimizing backpressure.
Top product features:
- True Union design allows for easy disconnection and reconnection of the valve
- Single flow design enables efficient water flow
- Viton seals provide reliable sealing up to 190°F
Top product applications:
- Pool circulation systems
- Water treatment systems
- HVAC systems
HAYWARD FLOW CONTROL TC20100F is a 1 in. inline true union check valve with a ball check mechanism for one-way flow control in water systems. It features a CPVC body, a CPVC check mechanism, FPM/FKM sealing components, and flange x flange end connections. The valve opens at 3 psi and has a rated flow of 18 gpm.
Key Features:
- Check valve design: inline true union body with ball check mechanism
- Size and connections: 1 in. valve with flange x flange ends
- ANSI Flange Class 150
- Materials: CPVC body and CPVC check mechanism
- Seal and seat materials: FPM/FKM
- seal material also listed as Viton
- Flow performance: full-flow design as listed by the supplier, Cv 11, rated flow 18 gpm
- Pressure ratings: 150 psi at 70 Degrees F
- water pressure rating: 235 psi at 70 Degrees F
- Temperature range: 34 Degrees F minimum operating temperature and 190 Degrees F maximum operating temperature
- Mounting: horizontal or vertical
- vertical flow-up orientation listed
- Media and application: water
- for compatible general-purpose and pump applications
- Certifications and standards: NSF 61, ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.90
- Package Width: 4.50
- Package Height: 4.50
- Package Weight: 2.07
