Ball Check Valve, TC Series, Inline, 1 1/4 in, Flange x Flange, PVC Body MPN:TC10125F
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment plants, and irrigation networks. Its compact design and low maintenance requirements make it an ideal choice for busy professionals and DIY enthusiasts alike. By preventing backflow and ensuring a smooth flow of water, the Check Valve helps to prevent damage to equipment and extend its lifespan. Its durability and resistance to corrosion also make it suitable for use in harsh environments, providing peace of mind for users and minimizing the risk of costly repairs.
Top product features:
- It allows fluid to flow in one direction and prevents backflow.
- It is designed for use in applications where a one-way flow is required.
- It is a self-actuating valve that opens and closes automatically.
Top product applications:
- Pool Equipment
- Well Pump
- Hydrotherapy System

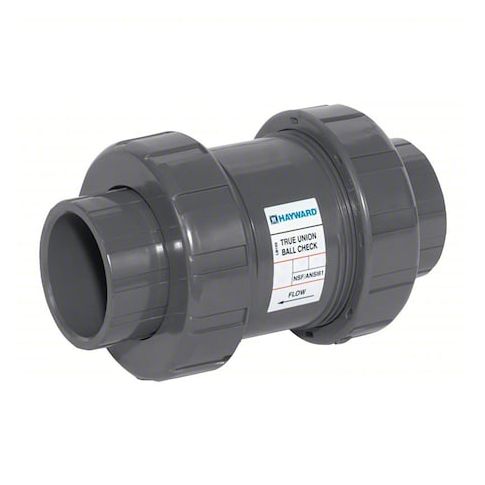

HAYWARD FLOW CONTROL TC10125F is an inline ball check valve with a PVC body and 1 1/4 in flanged connections on both ends. It uses a ball check mechanism for one-way flow and reverse-flow checking. For use in liquid handling systems and process lines with compatible corrosive chemical media within listed specifications. Mounting orientation: horizontal or vertical. Cracking pressure is 1.5 psi.
Key Features:
- Ball check mechanism: Uses a ball check mechanism for one-way flow and reverse-flow checking.
- Body material: PVC.
- Connection size: 1 1/4 in on side 1 and side 2.
- Connection type: Flange connections on both ends.
- Valve body style: Inline, 2-way design.
- Flow capacity: Cv 25.
- Maximum operating pressure: 235 psi.
- Operating temperature range: 34 degrees F to 70 degrees F.
- Seal material: FKM.
- Seat material: EPDM.
- Media: Compatible corrosive chemical media within listed specifications.
- NSF certification: NSF 61.
- Standards: ANSI 372, ANSI 61, ASTM D1784, ASTM D4101.
- Overall height: 6 15/16 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 7.50
- Package Height: 6.00
- Package Weight: 3.33
