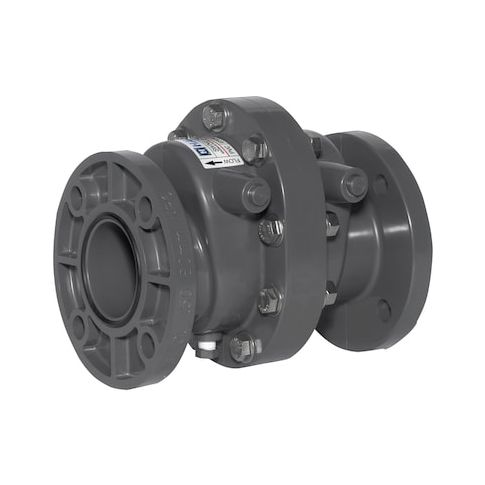

Swing Check Valve, SW Series, 3 in, Flanged, CPVC, Inline, 10.24 in Overall L MPN:SW2300E
The Hayward CPVC Swing Check Valve is a reliable and efficient solution for various water and steam applications. Its swing mechanism allows for easy installation and maintenance, while its CPVC body provides resistance to corrosion and chemical damage. Suitable for horizontal and vertical mounting, this valve can handle up to 150 psi of water pressure at 70°F. Ideal for use in pool and spa systems, as well as in industrial and commercial settings, this valve ensures full flow and prevents backflow, making it a valuable addition to any plumbing system. Its durable design ensures long-lasting performance and minimal maintenance.
Top product features:
- Swing mechanism allows for easy installation and removal of the valve
- EPDM seal material provides a durable and reliable seal against water pressure up to 150 psi
- Full flow design allows water to pass through the valve without restriction
Top product applications:
- Pool equipment
- Plumbing systems
- Water treatment systems
HAYWARD FLOW CONTROL SW2300E is a 3 in. CPVC swing check valve with a flanged inline body for one-way flow control in water systems. Its swing mechanism opens with forward flow and closes under reverse-flow conditions. The valve body and check mechanism are constructed of CPVC with EPDM seal and seat materials. It is rated for horizontal or vertical mounting and is specified as full flow with a 150 gpm flow rating and 250 Cv.
Key Features:
- Valve type: CPVC swing check valve
- Nominal size: 3 in.
- Body and mechanism material: CPVC
- Check mechanism: Swing
- Connection type: Flanged, 3 in. x 3 in.
- ANSI flange class: Class 150
- For media: Water
- Seal and seat material: EPDM
- Maximum water pressure: 150 psi at 70 degrees F
- Maximum operating pressure: 150 psi
- Cracking pressure: 3 psi
- Flow rating: 150 gpm
- Cv: 250
- Full flow: Yes
- Mounting orientation: Horizontal or vertical
- Operating temperature range: 34 degrees F to 180 degrees F
- Valve body style: Inline
- Silent check: Standard
- Standards: ASTM D1784
- Overall length: 10.24 in.
- Overall height: 8 61/64 in.
- Width: 8 13/16 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.37
- Package Width: 9.06
- Package Height: 11.50
- Package Weight: 12.80
