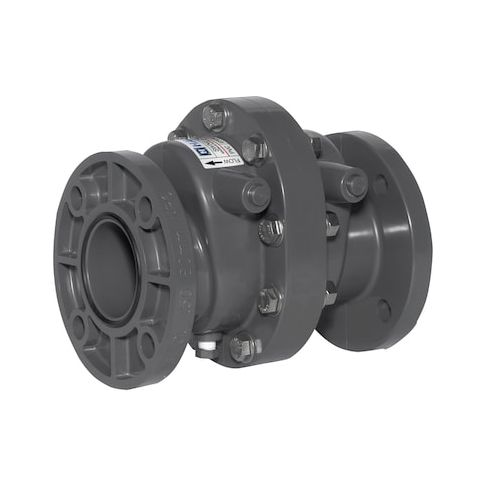

Check Valve, SW Series, Swing, 3 in Pipe Size, Flanged, CPVC, Inline Body, 10.24 in Overall L MPN:SW2300EC
The Hayward CPVC Swing Check Valve is a reliable and versatile solution for various piping applications. Its swing mechanism allows for easy installation and maintenance, while its CPVC body ensures durability and resistance to corrosion. Suitable for horizontal and vertical mounting, this valve can be used in a range of water-based systems, including irrigation, plumbing, and pool equipment. With a maximum water pressure rating of 150 psi, it can handle high-pressure applications. Its compact design and easy installation make it an ideal choice for new construction and replacement projects.
Top product features:
- Swing check valve mechanism allows for full flow when not restricting water flow
- EPDM seal material resists degradation from water and steam exposure
- Flanged connection type allows for secure attachment to pipes or tubes
Top product applications:
- Water Filtration Systems
- Pool and Spa Systems
- Industrial Process Control
HAYWARD FLOW CONTROL SW2300EC is a 3 in. CPVC swing check valve with a flanged inline body for one-way water flow and reverse-flow control applications. It uses a swing check mechanism with EPDM seal and seat materials. Mounting orientation: horizontal or vertical. This valve is rated for full flow and is designed for water media with CPVC construction.
Key Features:
- 3 in. nominal valve size with 3 in. flange connections on both sides
- CPVC body and CPVC swing check mechanism
- Inline flanged body design with Class 150 ANSI flange class
- Media: water
- Maximum operating pressure: 150 psi
- Maximum water pressure: 150 psi at 70 degrees F
- Cracking pressure: 3 psi
- Flow rate: 150 gpm
- Cv: 100
- Operating temperature range: 34 degrees F to 180 degrees F
- Mounting orientation: horizontal or vertical
- Full flow
- Counterweight included
- Standard: ASTM D1784
- Overall dimensions: 10.24 in. L x 8 61/64 in. H x 8 13/16 in. W
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.37
- Package Width: 9.06
- Package Height: 11.50
- Package Weight: 14.00
