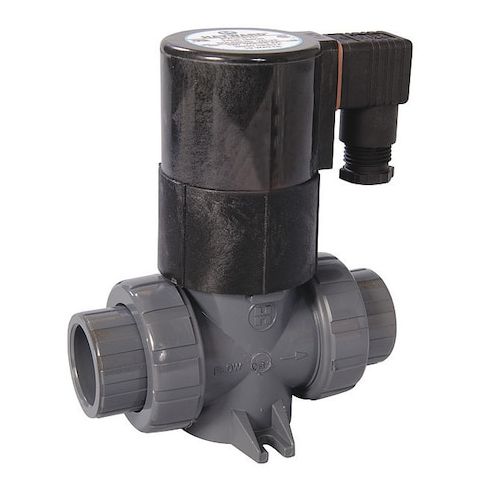

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120VAC, Inline Single, PVC MPN:SV10050STV
Free Shipping
In Stock
The Hayward Flow Control SV10050STV is a reliable and efficient 2-way, 2-position, normally closed solenoid valve designed for applications that require precise fluid control. Ideal for use in residential and commercial swimming pools, water features, and industrial processes, this valve offers a durable PVC body and Viton seals, ensuring corrosion resistance and long-lasting performance. With a direct acting mechanism and 120VAC energizing coil, it provides easy operation and installation. Suitable for handling water, salt water, and acids, this valve is perfect for applications that require precise fluid control and reliable operation in harsh environments.
Top product features:
- The valve operates using a direct acting mechanism with an energizing coil included.
- The valve supports horizontal or vertical mounting orientations.
- The valve features NPT inlet and outlet connections with a nominal pipe size of 1/2 inch.
Top product applications:
- Pool and Spa Systems
- Water Treatment Plants
- Industrial Process Control
The HAYWARD FLOW CONTROL SV10050STV is a 2-way, 2-position, normally closed solenoid valve with Fluid compatibility: Water, Salt Water, Acids. Constructed with a PVC body and Viton seals, it operates using a direct acting mechanism with an energizing coil included. The valve supports horizontal or vertical mounting orientations and offers Environmental ratings: Corrosive, Indoor, Outdoor
- NEMA 4 enclosure rating. It features NPT inlet and outlet connections with a nominal pipe size of 1/2 inch and a straight valve body style.
Key Features:
- - Valve Type: Inline Single, Direct Acting
- - Operation: Normally Closed, 2-Way/2-Position configuration
- - Material: PVC valve body with Viton seals
- - Electrical: 120 VAC, 60 Hz coil included, 19.2 W power consumption, Coil enclosure: NEMA 4 rated, Class F insulation
- - Connections: 1/2 in NPT inlet and outlet with NPT threading
- - Fluid Compatibility: Acids, Salt Water, Water
- fluid temperature range 120°F to 200°F
- - Pressure Ratings: Maximum differential pressure 90 psi for water and 120 psi for light oil
- - Flow Ratings: Maximum flow rate 3.8 gpm, coefficient of volume (Cv) 2.3, maximum flow velocity 5 fps
- - Dimensions: Overall height 6-5/16 in, length 5-5/16 in, width 3 in
- - Environmental ratings: Corrosive, Indoor, Outdoor
- NEMA 4 enclosure rating
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 4.00
