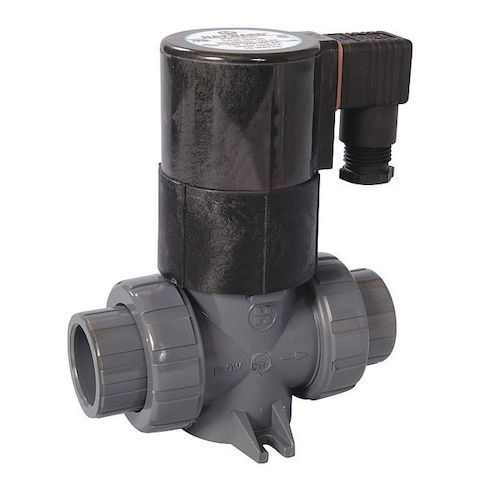

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, Inline Single, CPVC MPN:SV20050STE

• The HAYWARD FLOW CONTROL SV20050STE is a 2-way, 2-position solenoid valve designed for inline single valve body style applications. It operates with a normally closed configuration and features direct acting operation. The valve is constructed with a CPVC body and uses EPDM seals

• media compatibility: water, acids, and salt water media. This solenoid valve supports both horizontal and vertical mounting orientations and includes the coil and sealing components. It is rated for a maximum fluid temperature of 200°F and ambient temperatures ranging from 34°F to 190°F.

  Key Features:

  • - Valve Body Material: CPVC
  • - Seal Material: EPDM
  • - Valve Design: 2-Way/2-Position
  • Valve Positions: 2-Position
  • Valve Type: Inline Single
  • - Operation Type: Direct Acting
  • - Starting Configuration: Normally Closed
  • - Nominal Pipe Size: 1/2 in
  • Inlet/Outlet Connection Type: NPT
  • Thread Type: NPT
  • - Maximum Operating Pressure Differential: 90 psi (Water), 120 psi (Light Oil)
  • - Maximum Airflow: 3.8 gpm
  • Maximum Flow Rate: 5 fps
  • Cv: 2.3
  • - Orifice Diameter: 3/8 in
  • - Electrical Voltage: 120V AC
  • Frequency: 60 Hz
  • Wattage: 19.2 W
  • - Coil Enclosure: Watertight
  • Coil Insulation Class: F
  • Electrical Connections: 1/2 in Conduit
  • - Environmental use: Indoor and outdoor
  • NEMA Enclosure Rating: 4
  • - Overall Dimensions: Length 5-5/16 in, Width 3 in, Height 6-19/32 in
  • - Includes Coil: Yes
  • Includes Seal: Yes
